Product Details:
|
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Application: | Rotary Drum Granulating Machine |
|---|---|---|---|
| Name: | Large Capacity Revolving Drum Granulating Machine Manufacturer | Capacity: | 3-5T/H |
| Color: | Any | Usage: | Making Organic Or Compound Fertilizer Granules |
| High Light: | Large Capacity Rotary Drum Fertilizer Granulator,NPK Rotary Drum Fertilizer Granulator,Large Capacity NPK Fertilizer Granulator |
||

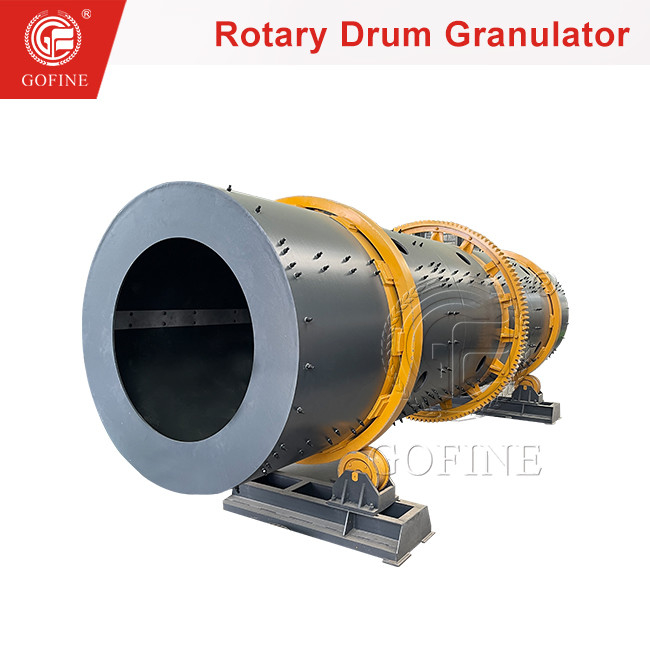

Introduction of rotary drum granulator for fertilizer
Rotary granulator is a kind of forming machine which can make materials into specific shapes. Rotary granulator is one of the key equipment in compound fertilizer industry. It is suitable for cold and hot granulation and large-scale production of high concentration and medium and low concentration compound fertilizers. The main way of work is wet pelletizing of aggregates. By a certain amount of water or steam, the basic ingredients can produce sufficient chemical reaction in the drum, and the extrusion force between the particles can be agglomerated into spheres.
Product Description
Drum granulator is one of the key equipment in the compound fertilizer industry It is suitable for mass production of cold, hot granule and high and low concentration compound fertilizer.
| Model | power(kw) | internal diameter(mm) | length(mm) | Dip angle(°) | speed( r/min) | Throughput(t/h) |
| ZGZ1240 | 5.5 | 1200 | 4000 | 2-5 | 17 | 1-3 |
| ZGZ1260 | 7.5 | 1200 | 6000 | 2-5 | 14 | 2-5 |
| ZGZ1540 | 7.5 | 1500 | 4000 | 2-5 | 14 | 3-5 |
| ZGZ1560 | 11 | 1500 | 6000 | 2-5 | 11.5 | 5-7 |
| ZGZ1870 | 15 | 1800 | 7000 | 2-5 | 11.5 | 7-9 |
| ZGZ2080 | 18.5 | 2000 | 8000 | 2-5 | 11 | 8-12 |
| ZGZ2280 | 22 | 2200 | 8000 | 2-5 | 10.5 | 10-15 |
