Bio Fertilizer Granulator Machine / Mineral Powder Disc Granulator Machine

Product Details

Place of Origin: china

Brand Name: gofine

Certification: IOS9001/CE

Model Number: YZ-500

Payment & Shipping Terms

Minimum Order Quantity: 1 Set

Price: Negotiation

Packaging Details: nude cargo

Delivery Time: 5-8work-days

Payment Terms: L/C, T/T, Western Union, MoneyGram

Supply Ability: 30set/monthly

Get Best Price
Product Details
Highlight:

Bio Fertilizer Granulator Machine

,

Bio Fertilizer Disc Granulator Machine

,

Mineral Powder Disc Granulator Machine

After-sales Service Provided:
Engineers Available To Service Machinery Overseas
Application:
Fertilizer Granulation
Name:
Bio Fertilizer / Mineral Powder Disc Granules Organic Fertilizer Granulator
Capacity:
3-5T/H
Color:
Any
Installation:
Guide
After-sales Service Provided:
Engineers Available To Service Machinery Overseas
Application:
Fertilizer Granulation
Name:
Bio Fertilizer / Mineral Powder Disc Granules Organic Fertilizer Granulator
Capacity:
3-5T/H
Color:
Any
Installation:
Guide
Product Description

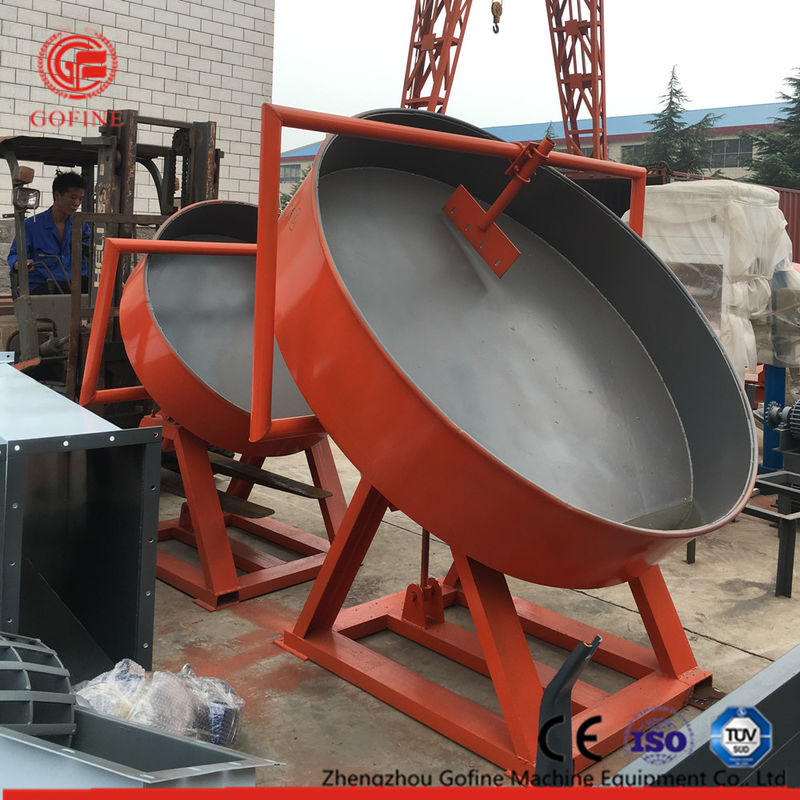

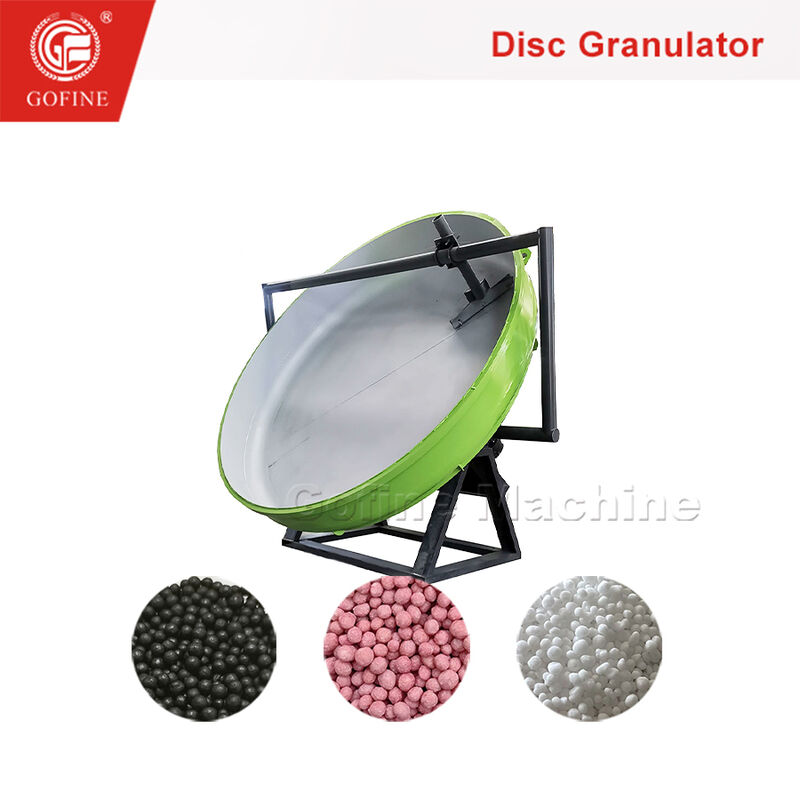

Bio Fertilizer / Mineral Powder Disc Granules Organic Fertilizer Granulator

Disc granulator (also known as the ball plate) adopts the whole circular arc structure, and the granulating rate can reach more than 93%. It has three discharging ports, which is convenient for discontinuous production, greatly reducing the labor intensity and improving the labor efficiency. The reducer and motor use flexible belt drive to start smoothly, slow down the impact force and improve the service life of the equipment. The plate bottom is strengthened by a plurality of radiant steel plates, which is durable and never deformed. It is an ideal equipment for organic fertilizer and compound fertilizer, which is designed with thick, heavy and strong base, so it has no fixed anchor bolts and smooth operation.

By adding water raw material powder can mix evenly, then being transported into the disk; as the rotation of disc, material inside gradually formed globular by rolling; After achieving the predetermined diameter, the granulation will be out of the pan to the next procedure again.

Product Details

  1. Uniform granulation,high granulation rate,stable operation,durable equipment and long service life.
  2. The main gear of granulator adopts high frequency quenching technology, and its service life is doubled.
  3. The plates are reinforced with a number of radiant steel plates,which are durable and never deformed
  4. There is high strength fiberglass in the granulation pan making the machine durable

parameter

Model

Diameter of

pelletizing disc(mm)

disc edge

height

(mm)

speed(r/min) power(kw) Throughput(T/h) Reducer Model Shape size(mm)
YZ-500

500

200 32 0.55 0.02-0.05 BWY0-43-1.55KW 650*600*800
YZ-600 600 280 33.5 0.75 0.05-0.1 BWY0-43-1.55KW 800*700*950
YZ-800 800

200

21 1.5 0.1-0.2 XWD4-71-1.5KW 900*1000*1100
YZ-1000 1000 250 21 1.5 0.2-0.3 XWD4-71-1.5KW 1200*950*1300
YZ-1200 1200 250 21 1.5 0.3-0.5 XWD4-71-1.5KW  1200*1470*1700
YZ-1500 1500 300 21 3 0.5-0.8 XWD5-71-3KW 2060*1700*2130
YZ-1800 1800 300 21 3 0.8-1.2 XWD5-71-3KW 2060*1700*2130
YZ-2000 2000 350 21 4 1.2-1.5 XWD5-71-4KW 2260*1650*2250
YZ-2500 2500 450 14 7.5 1.5-2.0 ZQ350 2900+2000*2750
YZ-2800 2800 450 14 11 2-3 ZQ350 3200*2200*3000
YZ-3000 3000 450 14 11 2-4 ZQ350 3400 2400*3100
YZ-3600 3600 450 13 18.5 4-6 ZQ400 4100* 2900*3800
