Two Piece Roll Fertilizer Granulating Machine For Compound Fertilizer / Medicine Industry

Product Details

Place of Origin: china

Brand Name: gofine

Certification: IOS9001/CE

Model Number: JZ-1T

Payment & Shipping Terms

Minimum Order Quantity: 1 Set

Price: Negotiation

Packaging Details: nude cargo

Delivery Time: 5-8work-days

Payment Terms: L/C, T/T, Western Union, MoneyGram

Supply Ability: 30set/monthly

Get Best Price
Product Details
Highlight:

double roller fertilizer granulator

,

extrusion granulator

After-sales Service Provided:
Engineers Available To Service Machinery Overseas
Name:
Double Roller Compaction Granulator / Two Piece Roll Granulator
Installation:
Guide
Application:
Ball Peat Granules Disk Granulator
Capacity:
3-5T/H
Weight:
1.2T
After-sales Service Provided:
Engineers Available To Service Machinery Overseas
Name:
Double Roller Compaction Granulator / Two Piece Roll Granulator
Installation:
Guide
Application:
Ball Peat Granules Disk Granulator
Capacity:
3-5T/H
Weight:
1.2T
Product Description

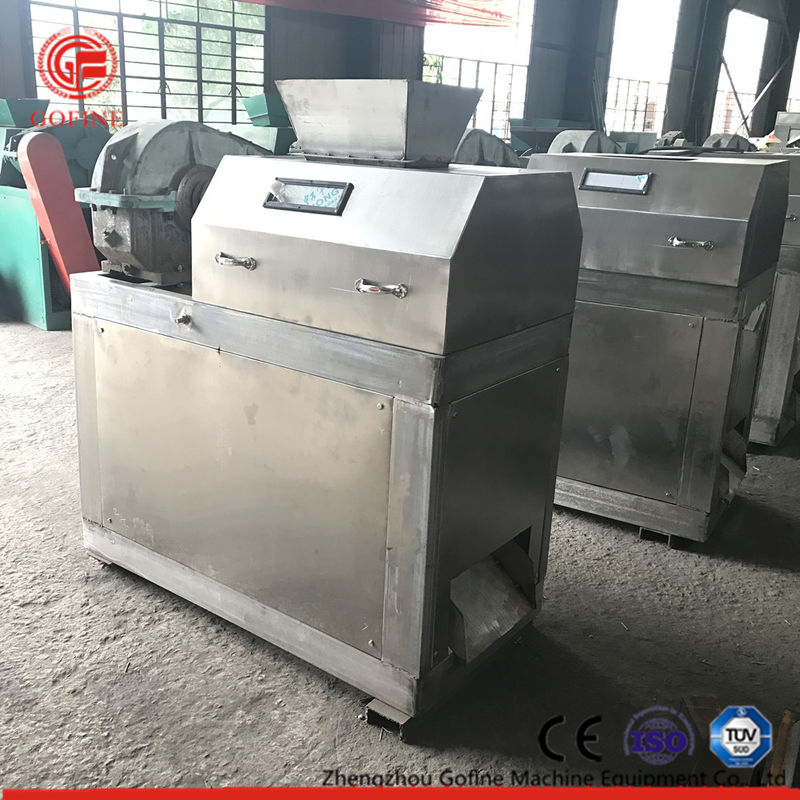

Double Roller Compaction Granulator / Two Piece Roll Granulator

Roll extrusion granulator is suitable for the granulation of compound fertilizer, medicine, chemical industry, feed and other raw materials with high granulation rate. Can produce a variety of concentrations, a variety of types including organic fertilizer, inorganic fertilizer, biological fertilizer, magnetic fertilizer,compound fertilizer etc.



The working principle of the roll extrusion granulator is to achieve the opposite work of the rolls by synchronizing the gears with the passive shaft. The material is fed from the feed hopper, extruded through a roll, and then transferred to a crushing screen working chamber to produce finished granules.



double roller granulator / dry fertilizer granulating equipoment widely used for granulation of various materials,such as compound fertilizer material, medicine, chemical industry, fodder etc.Can produce a variety of concentrations, various types compound fertilizer(including organic fertilizer, inorganic fertilizer, biological fertilizer, magnetic fertilizer etc).Especially for rare earths,potash, ammonium bicarbonate series compound fertilizer.Also the promotion program of environmental projects.



Driven by the motor pulley, the belt passed through the reducer to a pair of sliding mold shell with two high pressure roller bodies, make them to do the opposite work. For the DZJ-Ⅰtype extruder, between the two rollers is a group of counter gears interaction with each other. While the DZJ-Ⅱ-type extruder, the two rollers are directly driven by a dedicated reducer on the two output shaft, and finally reach the purpose of granulation.



The complete equipment is less investment, quicker and good economic returns. It is also compact, scientific and rational, and advanced technology. The whole equipment is saving energy, no waste discharge, stable operation, reliable operation and easy maintenance. Wide adaptability of raw materials includes fertilizer, pharmaceuticals, chemicals, feed and other raw materials. The ratio of forming particles is high. It can produce a variety of concentrations of various types (including organic fertilizer, inorganic fertilizer, fertilizer, and magnetic fertilizer) fertilizer, in particular, rare earth, ammonium bicarbonate series of fertilizer granulation. The production line fills the gap, leading in China.



The raw materials have wide adaptability and high granulation rate It can produce compound fertilizers of various comcentra ions and types

Product Details

  1. Ball forming rete can reach 85%.no drying
  2. Double roll pressure determines particle strength
  3. Roll speed is adjusted by changing the belt pulley transmission ratio
  4. Roll skin adopts new wear-resistant material

parameter

Model power(kw) Particle diameter(mm) Roller size(mm) Overall dimensions(mm)
JZ-1T

diameters4.5mm : 11

diameter > 4.5mm : 15

3- 10 150*220 1450*800*1450
JZ-1.5T

diameters4.5mm : 18.5

diameter > 4.5mm : 22

3- 10 150*300 1450*850*1500
JZ-2T

diameters4.5mm : 22

diameter > 4.5mm : 30

3- 10 185*300 1630*850*1650
JZ-2.5T

diameters4.5mm: 37

diameter > 4.5mm : 45

3- 10 300*300 1850*1100*2050
