Product Details:
|
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Name: | Pig Manure And Cattle Manure Fermentation Machine Vegetable Waste Fermentation |
|---|---|---|---|
| Type: | Fermentation Tank | Color: | Customer's Request |
| Working Height: | 7000mm | Machine Type: | Towable |
| High Light: | compost fertilizer making machine,organic manure making machine |
||
This equipment utilizes the rapid reproduction and decomposition of aerobic microorganisms for fermentation. It evaporates water from organic wastes while reducing organic wastes, and obtains excellent organic fertilizer by simple operation.The fermentation equipment can be used to treat pig manure, chicken manure, cattle
Organic waste such as manure, sheep manure, mushroom residue, Chinese medicine residue, crop straw Material, 10 hours can complete the harmless treatment process, occupying less land(The fermentation machine only covers 10-30 square meters), no pollution (closed Fermentation), completely kill the eggs (adjustable to 80-110 ° C High temperature), is the majority of aquaculture enterprises, recycling agriculture, ecological agriculture,the best choice for waste resource utilization. According to customer needs
Custom-made 5-150m different capacity, different forms (horizontal, stand Fermentation tank. During fermentation, aeration, temperature control, agitation, removal
Stinky automatic control. When the material is discharged, the pneumatic discharge device is started to discharge quickly.automatic control throughout, no need for worker operation.
| Model | BL-105 | |
| Total capacity (m2) | 105 | |
| hopper capacity (m2) | 1.5 | |
| Entity weight (t) | 33 | |
| Power AC380V(HZ) | 50 | |
| Top blower (kw) | 4 | |
| Below blower (kw) | 2*12.5 | |
| Electric heating (selection) (kw) | 7.5 | |
| Hydraulic motor (kw) | 11 | |
| Feeder motor (kw) | 0.37 | |
| Hopper Lifting machine (kw) | 4 | |
| Deodorizing Induced Draft Fan/Water pump(kw) | 4/0.55 | |
| Installed power (kw) | 56.42 | |
| Installed power (No heating) (kw) | 48.92 | |
| 24-hour average power (kw) | 22 | |
| Length, width and height | 7.0*8.0*9.4 | |
| Pot diameter (m) | 5.5 | |
| Daily working ability | ||
| Chicken manure, pig manure (moisture content: 55-65%} | Cattle dung, kithen garbage sludge(moisture content: 60-70%) | |
| 10-14 | 8-12 |
|

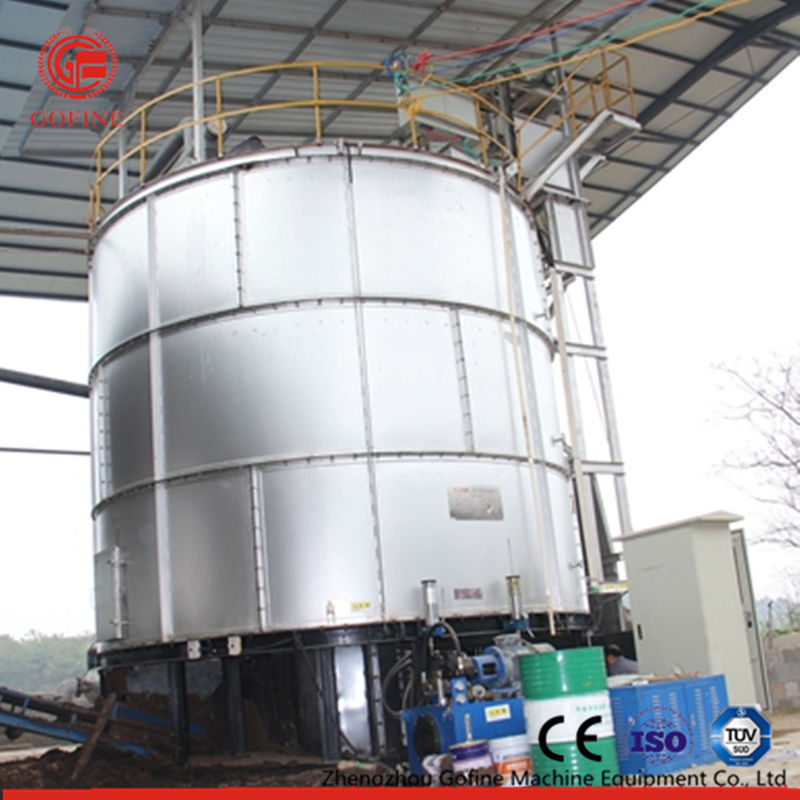

Waste composting reactor tower is composed of cylindrical containers, screw mixing blades and transmission parts. The cylinder structure ensures the small resistance movement of the material to be mixed in the tank. The positive and negative rotating screw is mounted on the same horizontal axis to form a low-power and efficient mixing environment. The ribbon-shaped leaves are generally made of double or three. The outer spiral of the material from both sides to the central collection, the inner layer of the material from the center to the two sides of the transport, the material can flow in the formation of more eddy current, speed up the mixing speed and fermented fully.
