Product Details:
|
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Application: | Rotary Drum Granulating Machine |
|---|---|---|---|
| Name: | Energy Saving Fertilizer Rotary Drum Granulator / Granulator Machine | Weight: | 0.15T |
| Power(W): | 11kw | Warranty: | 3 Years |
| High Light: | Rotary Drum Fertilizer Granulator Machine,Rotary Drum Fertilizer Granulator 3 T/H,Rotary Drum Fertilizer Granulator 1 T/H |
||

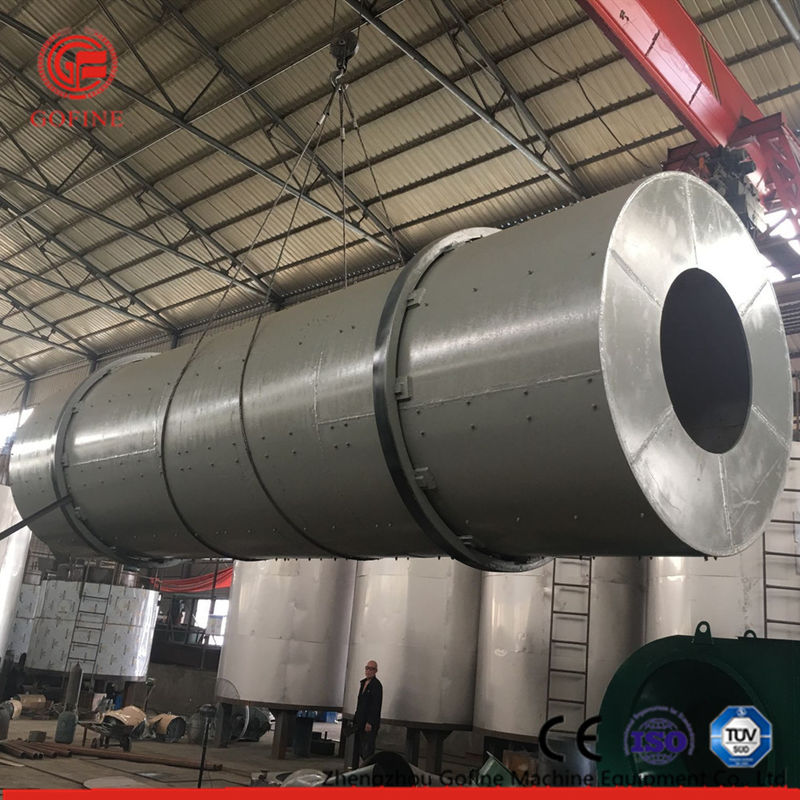

Rotary drum fertilizer granulator is one of the critical machines in compound fertilizer production line. It is applied to cold,hot granulation and quantity production of high,medium or low consentration compound blending fertilizer. The granulating method is rolling round fertilizer particles in wet granulation. With water or vapour added, the original fertilizer in rotary drum are blended uniformly and become humid, during this process, the fertilizer reacts and by way of the liquid environment and rotation in drum, the fertilizer particles squeeze each other and roll into fertilizer particles.The formed fertilizer particles are of 3-4mm.
The shell of the machine uses special rubber slab lining or acid-resistant stainless lining board which realizes auto scar removal and de-tumor instead of traditional drawknife equipment.High balling strength, good appearance, corrosion resistance, wear resistance, low energy consumption, long service life, easy operation and maintenance, etc.
Drum granulator is one of the key equipment in the compound fertilizer industry It is suitable for mass production of cold, hot granule and high and low concentration compound fertilizer.
| Model | power(kw) | internal diameter(mm) | length(mm) | Dip angle(°) | speed( r/min) | Throughput(t/h) |
| ZGZ1240 | 5.5 | 1200 | 4000 | 2-5 | 17 | 1-3 |
| ZGZ1260 | 7.5 | 1200 | 6000 | 2-5 | 14 | 2-5 |
| ZGZ1540 | 7.5 | 1500 | 4000 | 2-5 | 14 | 3-5 |
| ZGZ1560 | 11 | 1500 | 6000 | 2-5 | 11.5 | 5-7 |
| ZGZ1870 | 15 | 1800 | 7000 | 2-5 | 11.5 | 7-9 |
| ZGZ2080 | 18.5 | 2000 | 8000 | 2-5 | 11 | 8-12 |
| ZGZ2280 | 22 | 2200 | 8000 | 2-5 | 10.5 | 10-15 |
