Product Details:
|
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Application: | Fertilizer Granulation |
|---|---|---|---|
| Name: | Organic Fertilizer Granules / Poultry Manure Processing Machine | Warranty: | 3 Years |
| Weight: | 8.5T | Power(W): | 37-110kw |
| High Light: | Efficient Organic Fertilizer Granulation Equipment,Poultry Manure Organic Fertilizer Granulation Equipment,Poultry Manure granular fertilizer making machine |
||
without drying organic matter which is after fermentation, its raw materials’ moisture content can be 20-40%. Wide application: agricultural waste, animal manure, industrial waste, home scrap and life sludge and so on.

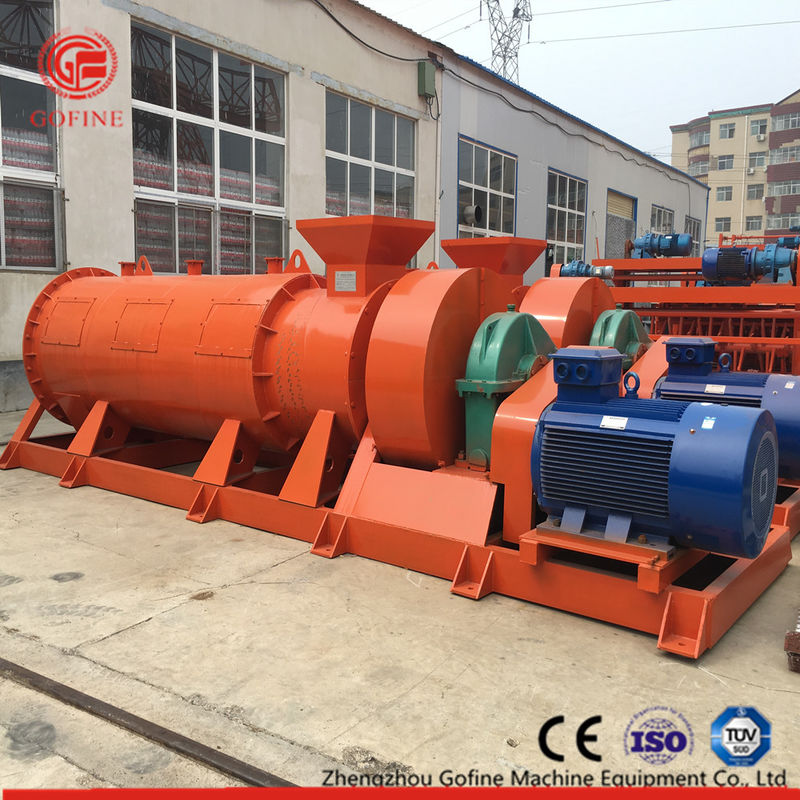

It is designed and manufactured by a new wet continuous push-rod granulation process. This machine not only granulates a variety of organic substances, especially crude fibre materials which are difficult to granulate by conventional equipment, such as crop straw, wine residue, bacterial residue, drug residue, animal manure, etc., but also granulates after fermentation, and makes raw materials such as municipal sludge of humic acid machine. The grain effect is also very good.
Wet stirring tooth granulator USES high speed rotary mechanical mixing force and the resulting aerodynamic force so that the fine powder material in the machine to achieve continuous mixing,granulation, spheroidization densification and other processes
1. The principle is simple, granulation speed is fast, the use of high-speed rotary mechanical mixing force and the resulting aerodynamic force, so that the fine powder material in the machine to achieve continuous mixing, granulation, 2.spheroidization, densification and other processes, so as to achieve the purpose of granulation.
2. The machine is especially suitable for granulating light and fine powder materials.The finer the basic particle, the higher the sphericity and the better the quality.
No need of binder, the use of organic particles in a certain force, can be embedded with each other grow up characteristics, granulation does not need to add binder.
3. Material source is extensive, livestock and poultry excrement dung urine kind, compost kind, green manure kind, sea compost kind, cake compost kind, grass charcoal kind, soil compost, three wastes, microorganism
| Model | JZ-60 | JZ-80 | JZ-100 | JZ-120 | JZ-150 |
| Installation angle | 2*-2.5° | 2*-2.5° | 2*-2.5° | 2*-2.5° | 2*-2.5° |
| Grainy yield (t/h ) | 1-1.5 | 1.5-2 | 2-3 | 3-5 | 5-8 |
| power(kw) | 37 | 55 | 75 | 90 | 110 |
| Feed moisture | 20%-40% | 20%-40% | 20%-40% | 20%-40% | 20%-40% |
| Feed Size(mesh) | 50 | 50 | 50 | 50 | 50 |
| Shape size(mm) | 4100*1600*1150 | 4250*1850*1300 | 4700*2350*1600 | 4900*2550*1800 | 5500*2800*2000 |
