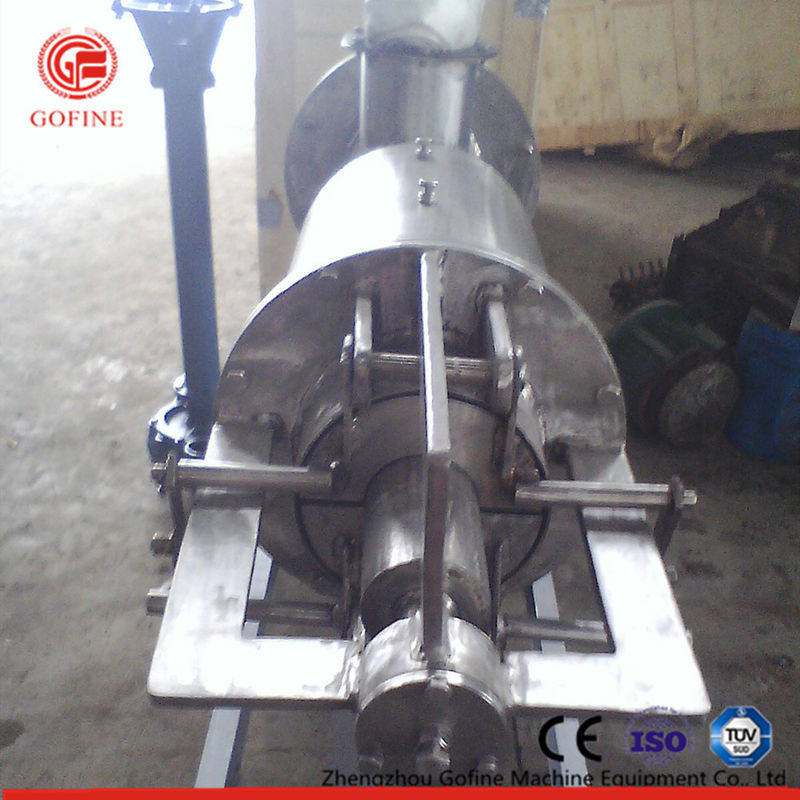

Automatic Solid Liquid Separator , Cow Dung Dewatering Screw Press Machine

Product Details

Place of Origin: china

Brand Name: gofine

Certification: IOS9001

Model Number: 260

Payment & Shipping Terms

Minimum Order Quantity: 1 Set

Price: Negotiation

Packaging Details: plywood case

Delivery Time: 5-8 work days

Payment Terms: L/C, T/T, Western Union, MoneyGram

Supply Ability: 20 stations/monthly

Get Best Price
Product Details
Highlight:

dung dewatering machine

,

manure dewatering machine

Features:
Request
Name:
Automatic Screw Extrusion Cow Dung Manure Dehydration And Drying Machine
Dimensions:
Widely Used Cow Dung Separating Dehydrator Machine
Raw Material:
1500*1400*1050mm
Weight:
350kg
Features:
Request
Name:
Automatic Screw Extrusion Cow Dung Manure Dehydration And Drying Machine
Dimensions:
Widely Used Cow Dung Separating Dehydrator Machine
Raw Material:
1500*1400*1050mm
Weight:
350kg
Product Description

Automatic Screw Extrusion Cow Dung Manure Dehydration And Drying Machine

Animal dung dewatering machine is also called dry and wet separator or solid and liquid separator. Except being the animal dung processing equipment, it can also be used to separate slag and liquid for high concentration organic wastewater, such as vinasse, dregs of decoction, starchy residue, sauce residue, eat hutch garbage, slaughterhouse, etc. This machine is small in size, easy to operate, convenient to install and maintain, most important is fast return on investment.

working principle

It separates the moisture and the animal manure by screw extruding extrusion technology.



First, When the cutting feed pump pushs the animal manure to the screw dewatering machine through the pipeline, the dewatering machine start to work.



The screw gradually pushes the animal manure to the front of the body. And at the same time, increases the pressure, forcing the moisture in the raw material to squeeze out from Mesh screen, flowing out of the drain pipe.


In order to grasp the discharging speed and moisture , the adjusting device in front of the main machine can be adjusted to achieve your requiremnet.

Operation:

The machine receives the material to be separated and conveys it using the screw conveyor inside the separator casing. The liquid phase is separated through the mesh of the cylindrical screen which encloses the screw conveyor. Along its path toward the exit, the material gradually separates progressively the less linked liquid and then the more strongly linked liquid until a plug of almost dry material has formed before the outlet. The plug is continuously expelled through the outlet diaphragm.The machine will automatically find its balance of squeezing force depending on the material. Consequently, it can be used for a wide range of materials without the need for any manual adjustments

Product Details

  1. Combined design structure
  2. Low power consumption ,low investment, high efficiency
  3. Very easy to operate and easy to maintain
  4. screw and screen are made of heat to maintain treated stainless steel durable

parameter

  host pump Vibration machine
Power(kw) 4-5.5 3-4 0.18
Speed(r/min) 33 1450 1450
Voltage(v) 380 380

380
