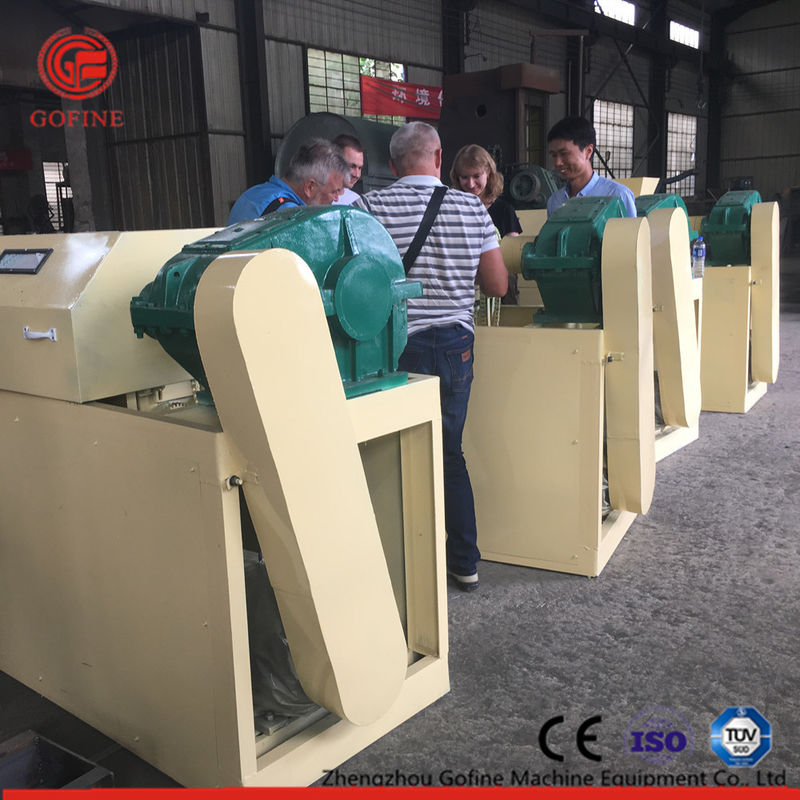

Compact Double Roller Granulator , Dry Granulation Roller Compactor Granulator

Double Roller Granulator / Dry Granulation Roll Compactor

During the production process, the raw material is fed into the hopper, then counter extrusion forming through the high pressure roller bodies. After demoulding, the material flow to the broken forming bin under the rollers. The driving force of the crushing and forming comes from the relative movement of the sprocket of the driving roller shaft, which is transmitted through the chain to the pair of crushing rollers. After the crushing broken forming bin, the finished product particles are sifted out through the screen and discharging trough.

Driven by the motor pulley, the belt passed through the reducer to a pair of sliding mold shell with two high pressure roller bodies, make them to do the opposite work. For the DZJ-Ⅰtype extruder, between the two rollers is a group of counter gears interaction with each other. While the DZJ-Ⅱ-type extruder, the two rollers are directly driven by a dedicated reducer on the two output shaft, and finally reach the purpose of granulation.

The complete equipment is less investment, quicker and good economic returns. It is also compact, scientific and rational, and advanced technology. The whole equipment is saving energy, no waste discharge, stable operation, reliable operation and easy maintenance. Wide adaptability of raw materials includes fertilizer, pharmaceuticals, chemicals, feed and other raw materials. The ratio of forming particles is high. It can produce a variety of concentrations of various types (including organic fertilizer, inorganic fertilizer, fertilizer, and magnetic fertilizer) fertilizer, in particular, rare earth, ammonium bicarbonate series of fertilizer granulation. The production line fills the gap, leading in China.

The raw materials have wide adaptability and high granulation rate It can produce compound fertilizers of various comcentra ions and types

Product Details

1. Ball forming rete can reach 85%.no drying
2. Double roll pressure determines particle strength
3. Roll speed is adjusted by changing the belt pulley transmission ratio
4. Roll skin adopts new wear-resistant material

parameter
