Product Details:
|
Name: | Disc Fertilizer Granulator Machine Organic Fertilizer Production Line | Usage: | Rotary Agitation Granulation |
---|---|---|---|
Type: | Fertilizer Granulating Equipment | Raw Material: | Fertilizer |
Application: | Fertilizer Granulating Equipment | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
High Light: | npk fertilizer production plant,npk fertilizer production line |
Compound fertilizer can supply comprehensive nutrient for crops. The production process of compound fertilizer is to combine the main nutrient elements needed for crops (such as N, P, K and other trace elements) by chemical method, that is, gather the nitrogen fertilizer, phosphorus fertilizer, potash fertilizer and other chemicals together and make into particles which are suitable for farming. Then applied into the soil, so that crops can absorb the nutrients they need from soil.
The fertilizer making machines are based on the advanced and mature technology,high production effcciency,low labour intensity,low investment cost.The whole fertilizer making process is computer central controlled,process art is accurate and easy to operation.The product of this process,each quality index accords with national standards GB15063-2001 for fertilizer.At the same time,waste gas and waste water discharge meet with the national quality requirements.The capacity ranges from 10,000 tons to 300,000 tons per year.
The disc pelletizing line is often used to process different fermented organic matter into bio organic fertilizer. One step molding technology is adopted. With livestock and poultry manure and agricultural waste as the main raw materials,Including: bentonite, kaolin, sludge, dry residue, ash, straw carbon and humic acid. manure or manure waste not only created economic benefits for enterprises, but also made great contributions to human environmental engineering. And then, the combined screen of powder sieve machine is adopted, and the final packing machine is automatically packed by the screw conveyor of the coating machine to complete the disc granulation production line.
General organic/inorganic fertilizer production line equipment is mainly composed of fermentation system,drving system, deodorization and dust removal system,dryinm arns ytemn,batching system, mixing system,grinding.systern.oacerenssnsystem and finished granulation system, screening system a product packaging system.
Batching machine:The main machine is composed of feding system, weighing device,silo and conveyor belt.it has high automation and only needs manual feeding.it greatly saves time and production costs and meets the national measurement standards.
Grinder:Cage crusher is suitable for the crushing of bulk materials in compound fertilizer production, but also widely used in chemical industry, building materials, mining and other industries. In the crushing process, the machine adopts high-strength bran-resistant cemented carbide chain plate with synchronous rotating speed.The inlet and outlet ports are designed reasonably,the crushed materials are uniform,the wall is ont easy to stick,and it is easy to clean up.
Blender:High eficiency, high stirring sfficiency and less floor area.Helical blades are made of special alloy with high wear resistance, smooth operation is driven by reducer,smooth and low noise,reasonable structure of single-axle mixer feeding from tom top and discharging from bottom.

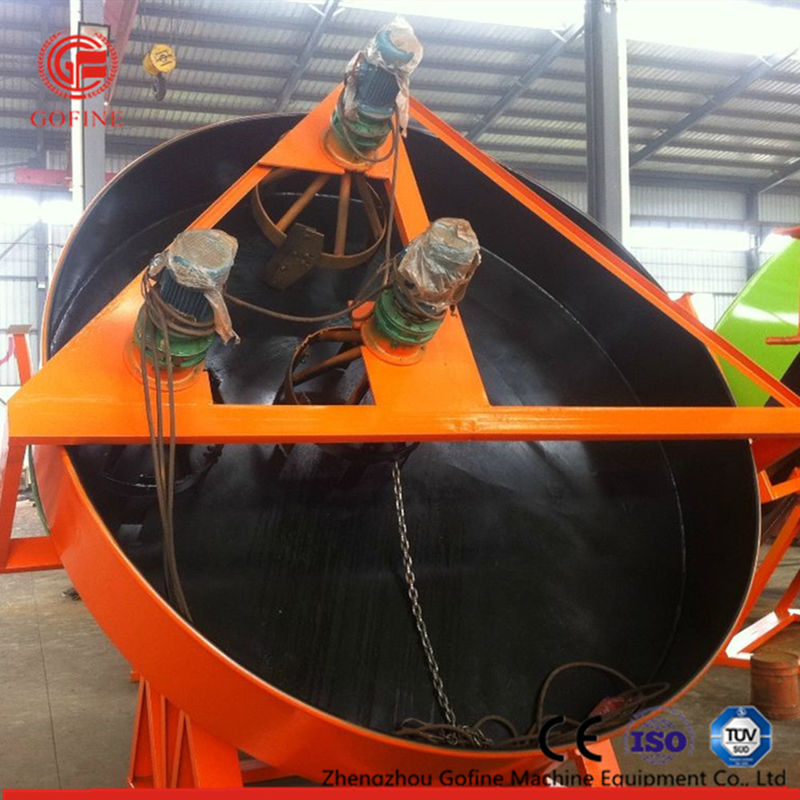

Granulator:adopts the whole circular arc structure, and the granulating rate can reach more than 93%.lt has three discharging ports,which is convenient for discomtinuous production,greatly reducing the labor intensity and improving the labor efficiency. the plate bottom is strengthened by a plurality of radiant steel plates,which is durable and never deformed.
Dryer:Rotary dryer is suitable for drying of organic frtilizer, slag clay limestone phosphogypsum steel plant,sludge of water slag power plant and sewage treatment Plant,it has the advantages of large drying capacity,stable operation,low energy consumption,convenient operation and high output.
automatic packing and Mechanical gripper:For handling or palletizing box-shaped materials, adjustable grabbing size, light aluminum alloy body, 304 stainless steel standard parts, swing hook base, one-way translation clamping ensures stable and reliable grabbing finished product.
All types of equipment are complete to meet the needs of customers. If you have special needs, please contact our engineers in order to tailor the most suitable production line for you. Welcome customers to consult.
