Labor Saving Organic Fertilizer Production Equipment

Labor Saving Fertilizer Plant Organic Fertilizer Production Line Equipment Machine

The products of organic fertilizer production line are made of fresh chicken and pig manure, without any chemical composition. The digestive ability chickens and pigs is poor, so they can only consume 25% of nutrients, then another 75% in feed will be excreted with faeces, so that the dry product will contain nitrogen, phosphorus, potassium, organic matter, protein and other ingredients. In the urine and manure of livestock, a year of excrement urine of a pig, combined with the cushion material can be 2000 a 2500kg high quality organic fertilizer.

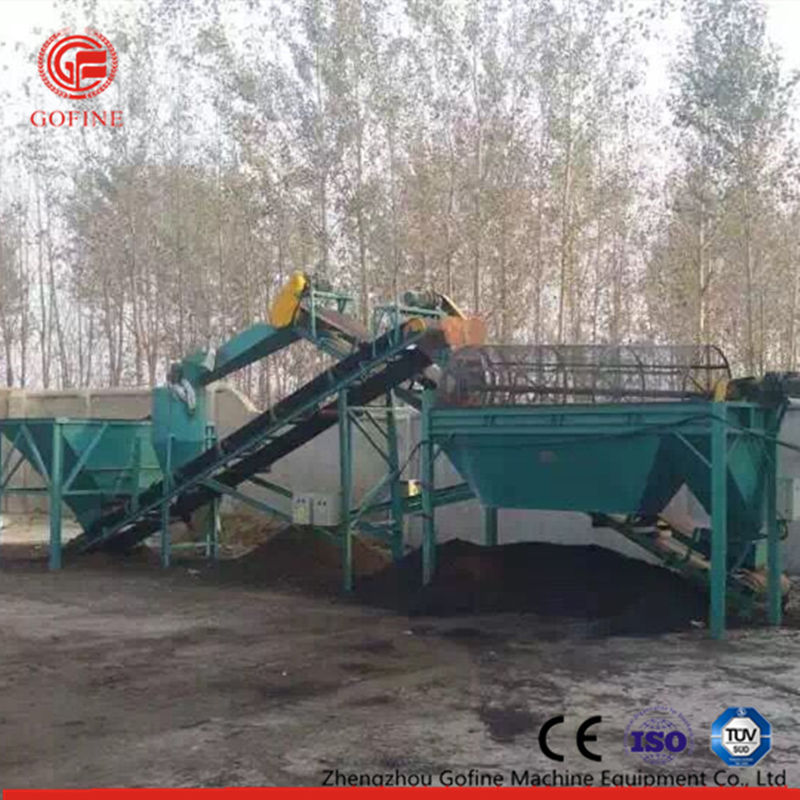

The production of powder organic fertilizer is relatively simple. Production equipment is mainly five parts: organic compost dumper, forklift, ration feeder, crusher, screening machine (drum screen or vibration screen). Before equipment and equipment, four sets of belt conveyors are needed to connect to form a complete production line.

1. A set of belt conveyors on the crusher is used to connect the screened bulk materials.

2. The upper strip of the screen is connected with the fermentation material.

3. A strip under the screen is connected with the finished material after screening, and the finished product is sent to the processing site for weighing and packing.

4. The warehouse needs a conveyor to load.

General organic / inorganic fertilizer production line equipment is mainly composed of fermentation system,drying system, deodorization and dust removal system,grinding system, batching system, mixing system,granulation system, screening system and finished product packaging system.

• [Productivity]: 1-200,000 tons
• [Scope of application]: Organic / inorganic fertilizer production
• [Applicable Materials] : Carbon-containing materials such as chicken manure, cattle manure, sheep manure, pig manure and NPK fertilizer, compound or chemical fertilizer, mineral fertilizer. etc

major equipment in the powder fertilizer production line

Forklift feeder:Organic fertilizer forklift feeder is a kind of bulk material conveying equipment, which can transport both fine materials with particle size below 5mm and large materials above 1m.With strong adaptability, adjustable transport capacity and continuous uniform transport of various things

Grinder:Cage crusher is suitable for the crushing of bulk materials in compound fertilier production, but also widely used in chemical industry, building materials, mining and other industries. In the crushing process, the machine adopts high-strength bran-resistant cemented carbide chain plate with synchronous rotating speed. The inlet and outlet ports are designed reasonably, the crushed materials are uniform, the wall is not easy to stick, and it is easy to clean up.

Screening machine:The rotary drum screen machine is a new type of self- cleaning material-screening special equipment. It is widely used in screening various solid materials that size less than 300mm. It has high efficiency, low noise, small amount of dust, long service life, less maintenance, easy maintenance and many other features.

automatic packing and Mechanical gripper:For handling or palletizing box-shaped materials, adjustable grabbing size, light aluminum alloy body, 304 stainless steel standard parts, swing hook base, one-way translation clamping ensures stable and reliable grabbing finished product.

All types of equipment are complete to meet the needs of customers. If you have special needs, please contact our engineers in order to tailor the most suitable production line for you. Welcome customers to consult.
