Product Details
Place of Origin: china
Brand Name: Gofine
Certification: IOS9001
Model Number: 105
Payment & Shipping Terms
Minimum Order Quantity: 1 Set
Price: Negotiation
Packaging Details: nude cargo
Delivery Time: 5-8 Work days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 20 stations/monthly
Installation: |
Guide |
Name: |
Special Animal Manure Fermenter For Fertilizer Manufacturers |
Color: |
Customer's Request |
Usage: |
Sealed Fermentation Organic Fertilizer |
Materials: |
SUS304/316 |
Machine Type: |
Towable |
Installation: |
Guide |
Name: |
Special Animal Manure Fermenter For Fertilizer Manufacturers |
Color: |
Customer's Request |
Usage: |
Sealed Fermentation Organic Fertilizer |
Materials: |
SUS304/316 |
Machine Type: |
Towable |
Main Features
1. Vertical design taking a small occupy space
2. Close or sealing fermentation, no odor in the air
3. Wide application to city/life/food/garden/sewage waste treatment
4. Electric heating to transfer oil with cotton thermal insulation
5. Inner can be stainless steel plate with thickness 4-8mm
6. With insulating layer jacket to improve the composting temperature
7. With power cabinet to control the temperature automatically
8. Easy use and maintain and can reach self clean
9. Paddle mixing shaft can reach complete and full mixing and blending materials
Model | BL-105 | |
Total capacity (m2) | 105 | |
hopper capacity (m2) | 1.5 | |
Entity weight (t) | 33 | |
Power AC380V(HZ) | 50 | |
Top blower (kw) | 4 | |
Below blower (kw) | 2*12.5 | |
Electric heating (selection) (kw) | 7.5 | |
Hydraulic motor (kw) | 11 | |
Feeder motor (kw) | 0.37 | |
Hopper Lifting machine (kw) | 4 | |
Deodorizing Induced Draft Fan/Water pump(kw) | 4/0.55 | |
Installed power (kw) | 56.42 | |
Installed power (No heating) (kw) | 48.92 | |
24-hour average power (kw) | 22 | |
Length, width and height | 7.0*8.0*9.4 | |
Pot diameter (m) | 5.5 | |
Daily working ability | ||
Chicken manure, pig manure (moisture content: 55-65%} | Cattle dung, kithen garbage sludge(moisture content: 60-70%) | |
10-14 | 8-12 |

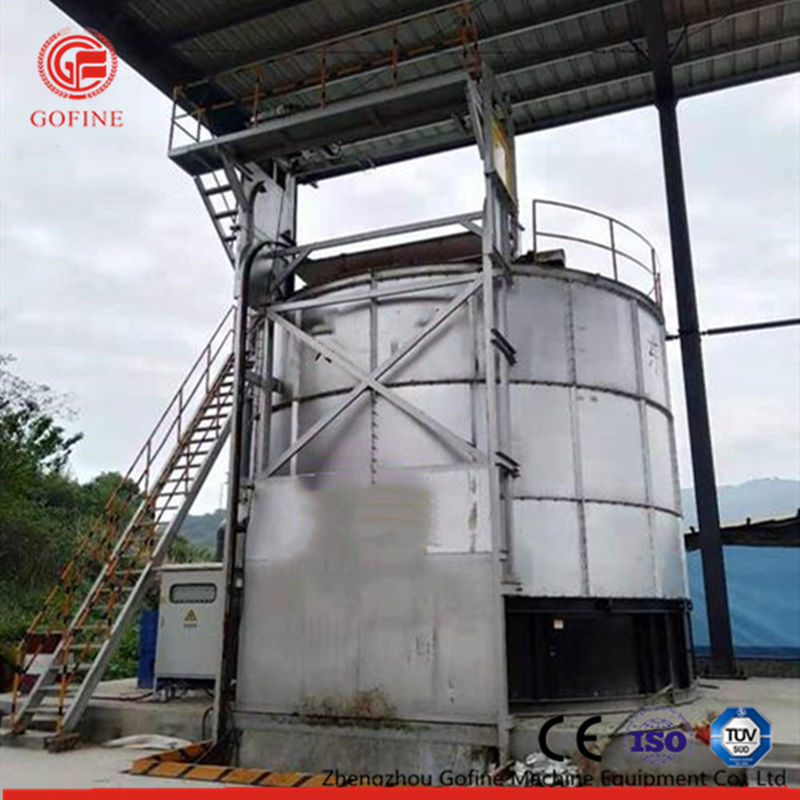

Waste composting reactor tower is composed of cylindrical containers, screw mixing blades and transmission parts. The cylinder structure ensures the small resistance movement of the material to be mixed in the tank. The positive and negative rotating screw is mounted on the same horizontal axis to form a low-power and efficient mixing environment. The ribbon-shaped leaves are generally made of double or three. The outer spiral of the material from both sides to the central collection, the inner layer of the material from the center to the two sides of the transport, the material can flow in the formation of more eddy current, speed up the mixing speed and fermented fully.
