Space Saving Compound Fertilizer Production Line Easy Operation Maintenance

Fertilizer Factory Roller Granulator Machine Compound Fertilizer Production Line

Description

Adopt dry pressing technology to press materials with moisture content lower than 10% into sheets, and then materials are processed into required particles through breaking, granules treaming and screening process.
The material is pressed by exterior force, and passes through the gap between the two rollers which are rotating in opposite directions, and then it's processed into sheets. The mass density of material might increase by 1.5-3 times, required intensity can be achieved

1. For dry powder granulating,don't need to dry,save energy and space.
2. Easy operation and maintenance.
3. Low power consumption
4. Once forming,no drying process.
5. Long service life.

Roller Granule Extrusion Machine with high quality, has double stick, and the stick is customized.
The Round Stick is required if Organic Fertilizer needed. besides, the Oval Stick is required if Compound Fertilizer needed.


• [Productivity]: 1-200,000 tons
• [Scope of application]: Organic / inorganic fertilizer production
• [Applicable Materials] : Carbon-containing materials such as chicken manure, cattle manure, sheep manure, pig manure and NPK fertilizer, compound or chemical ferilizer, mineral fertilizer. etc

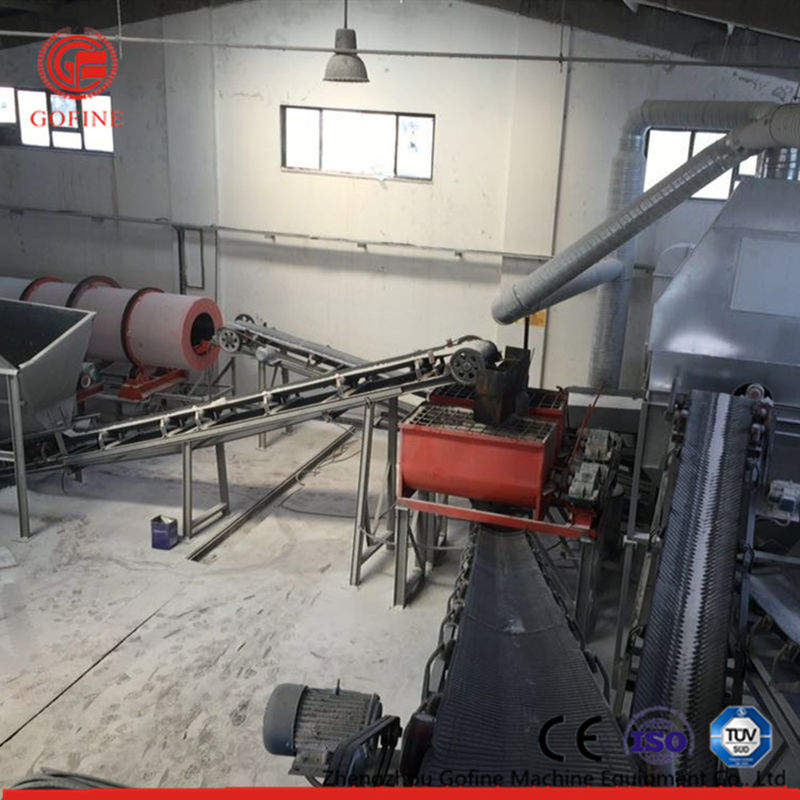

major equipment in the Double Roller fertilizer Granulation Production Line

Batching machine:The main machine is composed of feeding system,weighing device, silo and conveyor belt. It has high automation and only needs manual feeding. It greatly saves time and production costs and meets thenational measurement standards.

Grinder:Cage crusher is suitable for the crushing of bulk materials in compound fertilizer production, but also widely used in chemical industry, building materials, mining and other industries. In the crushing process, the machine adopts high-strength bran-resistant cemented carbide chain plate with synchronous rotating speed. The inlet and outlet ports are designed reasonably, the crushed materials are uniform, the wall is not easy to stick, and it is easy to clean up.

Blender:High eficiency, high strring fficiency and less floor area. Helical blades are made of special alloy with high wear resistance. Smooth operation is driven by reducer, smooth rotation and low noise.Reasonable structure of single axle mixer feeding from top and discharging from bottom

Granulator:It is used for granulation to all kinds of organic matter after ermentation, break through the conventional organic prling before granulation. no need to dry and crush the raw materials before granulation. It can direct burdening to work out cylindrical grain, and save a lot of energy.

automatic packing and Mechanical gripper:For handling or alltizing box shaped materials, adjustable grabbing size, light aluminum alloy body, 304 stainless steel standard parts, swing hook base, one way translation clamping ensures stable and reliable grabbing.

All types of equipment are complete to meet the needs of customers. If you have special needs, ple ase contact our engineers in order to tailor the most suitable production line for you. Welcome customers to consult.
