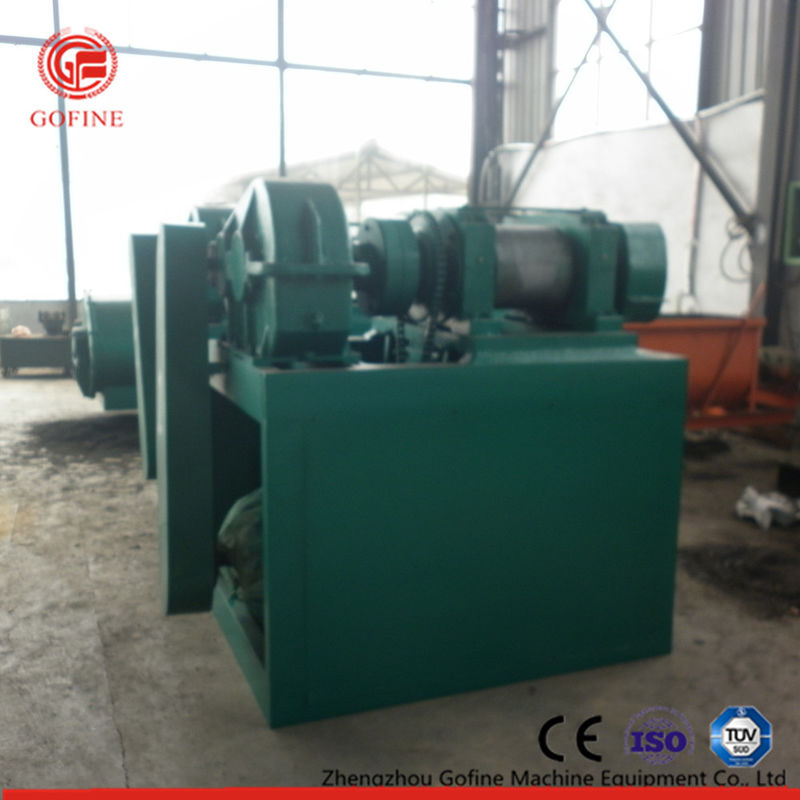

Mobile Double Roller Granulator Machine For Fertilizer Production Line

Mobile Double Roller Granulator Machine For Fertilizer Production Line
Mobile Double Roller Granulator Machine For Fertilizer Production Line

Large Image :  Mobile Double Roller Granulator Machine For Fertilizer Production Line

Product Details:
Place of Origin: china
Brand Name: gofine
Certification: ios9001
Model Number: series
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiation
Packaging Details: plywood case
Delivery Time: 5-8work-days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 10set/monthly

Mobile Double Roller Granulator Machine For Fertilizer Production Line

Name: Mobile Double Roller Pellet Making Machine For Fertilizer Productline Warranty: 3 Years
Capacity: 1-2T/H Usage: Counter-roll Extrusion Granulation
Color: Green Raw Material: Fertilizer
High Light:

fertilizer production plant


fertilizer granules making machine

Mobile double roller pellet making machine for fertilizer productline

Granulator description


Adopt dry pressing technology to press materials with moisture content lower than 10% into sheets, and then materials are processed into required particles through breaking, granules treaming and screening process.
The material is pressed by exterior force, and passes through the gap between the two rollers which are rotating in opposite directions, and then it's processed into sheets. The mass density of material might increase by 1.5-3 times, required intensity can be achieved




The material is cnstrainedly pressed by mechanical force, without any additional ingredients, thus purity is ensured
The dry material is made into granules directly, no need for any further drying process. So it's good for product process

The strength of the particles are high, the mass density is increased more apparently compared to other methods of granulation. It's especially applicable for to increase the mass density of product.

The pollution of enviroment is controlled, the wasted powder is reduced, the packaging fee is decreased and the product is easier in transportation.

The structure is compact, the maintenance is convenient, the operation is simple, the process is short, the energy consumption is Iow, the efficiency is high, the probablity of fault is Iow, the application range is wide, and the pressure of roller might be adjusted freely according to the property of material.

The materiar feeding adopts non-step inverter control, the automation level is high. One operation migh control multi-units of machine. The labor intensity is Iow, and the the machine might run continuously in tong time.

Adopt high quality alloy, stainless steel, Ti, Cr and other metal for driving parts, the wear-resistance, cossive-resistance, thermo-resistance and pressure-resistance is highly increased. The service life is long.


  • [Productivity]: 1-200,000 tons
  • [Scope of application]: Organic / inorganic fertilizer production
  • [Applicable Materials] : Carbon-containing materials such as chicken manure, cattle manure, sheep manure, pig manure and NPK fertilizer, compound or chemical ferilizer, mineral fertilizer. etc

major equipment in the Double Roller fertilizer Granulation Production Line

Batching machine:The main machine is composed of feeding system,weighing device, silo and conveyor belt. It has high automation and only needs manual feeding. It greatly saves time and production costs and meets thenational measurement standards.


Grinder:Cage crusher is suitable for the crushing of bulk materials in compound fertilizer production, but also widely used in chemical industry, building materials, mining and other industries. In the crushing process, the machine adopts high-strength bran-resistant cemented carbide chain plate with synchronous rotating speed. The inlet and outlet ports are designed reasonably, the crushed materials are uniform, the wall is not easy to stick, and it is easy to clean up.


Blender:High eficiency, high strring fficiency and less floor area. Helical blades are made of special alloy with high wear resistance. Smooth operation is driven by reducer, smooth rotation and low noise.Reasonable structure of single axle mixer feeding from top and discharging from bottom


Granulator:It is used for granulation to all kinds of organic matter after ermentation, break through the conventional organic prling before granulation. no need to dry and crush the raw materials before granulation. It can direct burdening to work out cylindrical grain, and save a lot of energy.


automatic packing and Mechanical gripper:For handling or alltizing box shaped materials, adjustable grabbing size, light aluminum alloy body, 304 stainless steel standard parts, swing hook base, one way translation clamping ensures stable and reliable grabbing.



All types of equipment are complete to meet the needs of customers. If you have special needs, ple ase contact our engineers in order to tailor the most suitable production line for you. Welcome customers to consult.
