Product Details:
|
| Key Word 1: | NPK Compound Fertilizer Granulating Equipment | Feature: | Factory NPK Fertilizer Pelleting Equipment |
|---|---|---|---|
| Materials: | Carbon Steel Or SS | Capacity: | 1-50 T/h |
| Input Moisture: | Less Than 10% | Temperature: | 30-80 Degree |
| Output Water: | Less Than 3% | Name: | Factory Npk Compound Fertilizer Granulating And Pelleting Equipment Manufacturer |
| Warranty: | 24 Months | Installation: | Guide |
| High Light: | npk fertilizer production plant,npk granulator machine |
||
factory npk compound fertilizer granulating and pelleting equipment manufacturer
Introduction of factory npk compound fertilizer granulating and pelleting equipment manufacturer

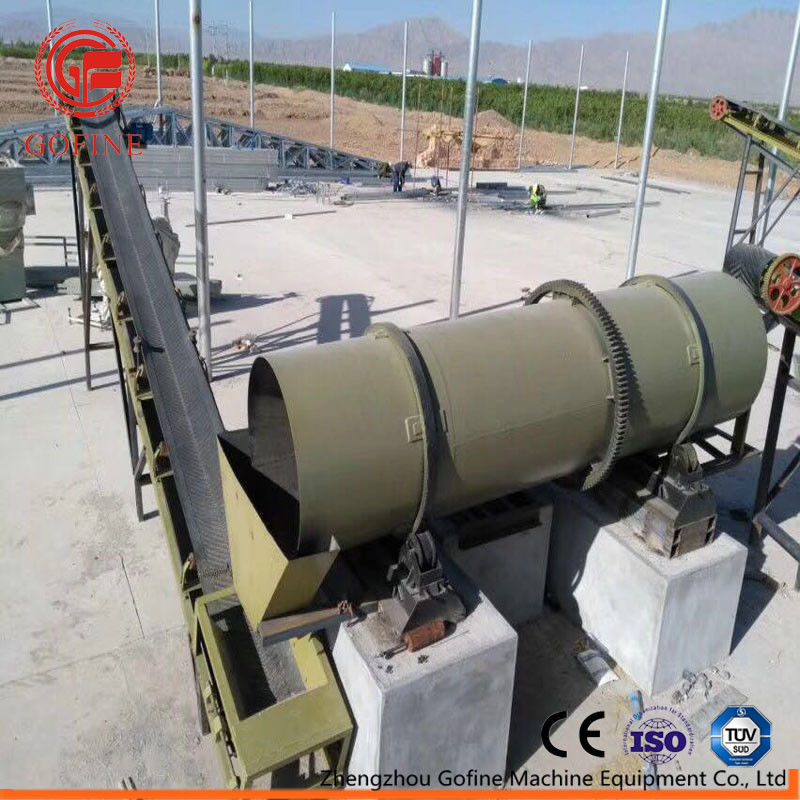

The calculated and measured quantities of the above mentioned raw materials is mixed properly in a mixer. The homogeneous mass is then processed in the drum granulating machine. The drum rotates at very low RPM. The material goes up and down with the cylinder for some height and then starts rolling again and again. As the material rolls on, the size of the granule increases. This material is transferred to the dryer with the help of a conveyor. The material is then passed through the cooler for cooling. Then transferred to screen to get diameter 1-4mm granules. The oversize and under-size are recycled back to the granulation process. Finally the end fertilizer is packed in 50 Kg bags.
Capacity or output of factory npk compound fertilizer granulating and pelleting equipment manufacturer
We can design the drawing and offer you capacity 10,000 ton per year to 300,000 ton per year according to your site. We send our technician to your side and have face to face confirm from A to Z, show you the complete NPK fertilizer production line.
Feature of factory npk compound fertilizer granulating and pelleting equipment manufacturer
Can be designed more automatically and advanced by Robots;
Can do different NPK ratio fertilizer from 20%-48%;
Anti-block and Uniform round granules with diameter 1-4mm;
Space tense occupied and smooth daily production;
No waste on materials and energy saved during operation;
Green and clean air and no pollution;
Equipment sheet of factory npk compound fertilizer granulating and pelleting equipment manufacturer
| No. | Processes | Machines | Function of machines |
| 1 | Batching process | Automatic batching machine | Ratio raw materials by formula |
| 2 | Grinding process | Grinder | Grind granules to powder |
| 3 | Mixing process | Mixer | Mix powder evenly, If necessary, add water, or other micro-elements |
| 4 | Granulating process | Feeding machine | Feed mixed powder into granulator evenly |
| Granulating equipment | Make mixed powder into fertilizer granules | ||
| 5 | Drying process | Dryer | Dry fertilizer granules to low moisture by hot air |
| Hot stove | Generate hot air to dryer | ||
| Cyclone | Collect dust from dryer | ||
| 6 | Cooling process | Cooler | Cool fertilizer granules to normal temperature |
| Cyclone | Collect dust from cooler | ||
| 7 | Screening process | Screening machine | Screen out required size from fertilizer granules |
| 8 | Coating process | Coating machine | Coat color, anti-blocking agent, micro-elements etc on fertilizer granules |
| 9 | Packaging process | Air compressor | Generate power to packaging machine |
| Packaging machine | Package fertilizer granules into bags |
