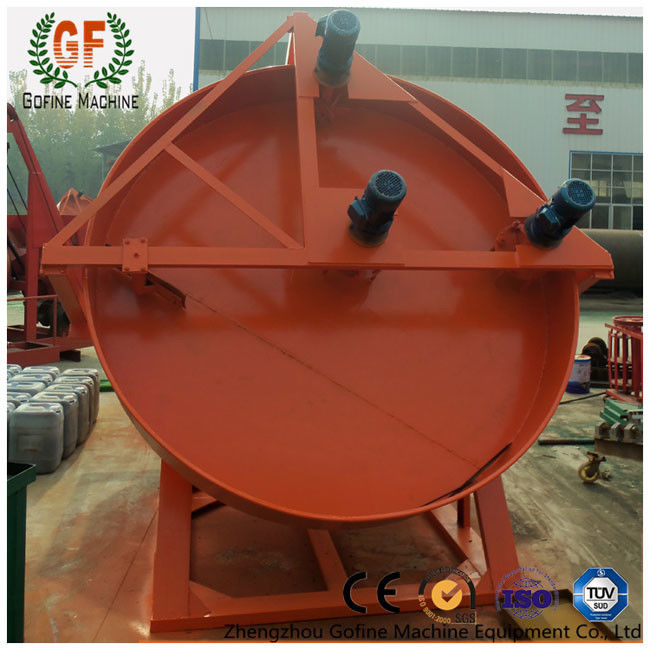

7.5kw Power Fertilizer Granulating Machine Pan Granulator Machine Overall Disc Structure

Product Details

Place of Origin: CHINA

Brand Name: Gofine

Certification: CE

Model Number: P2200

Payment & Shipping Terms

Minimum Order Quantity: 1 Set

Packaging Details: nude cargo

Delivery Time: 25 working days

Payment Terms: L/C, T/T, Western Union, MoneyGram

Supply Ability: 10 sets /monthly

Get Best Price
Product Details
Highlight:

7.5kw Fertilizer Granulating Machine

,

7.5kw Pan Granulator Machine

,

Disc Structure Fertilizer Granulating Machine

Application:
Pan Granulating Machine
After-sales Service Provided:
Engineers Available To Service Machinery Overseas
Raw Material:
NPK Or Organic Round Granules Fertilizer
Installation:
Guide
Power:
7.5 Kw
Capacity:
1000kg/h
Application:
Pan Granulating Machine
After-sales Service Provided:
Engineers Available To Service Machinery Overseas
Raw Material:
NPK Or Organic Round Granules Fertilizer
Installation:
Guide
Power:
7.5 Kw
Capacity:
1000kg/h
Product Description

Wide Use NPK fertilizer pan granulator rounding machine, Pan Granulator Machine



Introduction



Overall disc structure, granulation rate reaches above 93% The design of granulation plate is convenient for intermittent continuous production, which greatly reduces the labor intensity and improves labor efficiency.



The reduction gears and motor using the flexible belt driving, smooth start, slowing impact, extend equipment service life.
The design of disc bottom is thicker, heavier and more stable, not need to be fixed by anchor bolts.

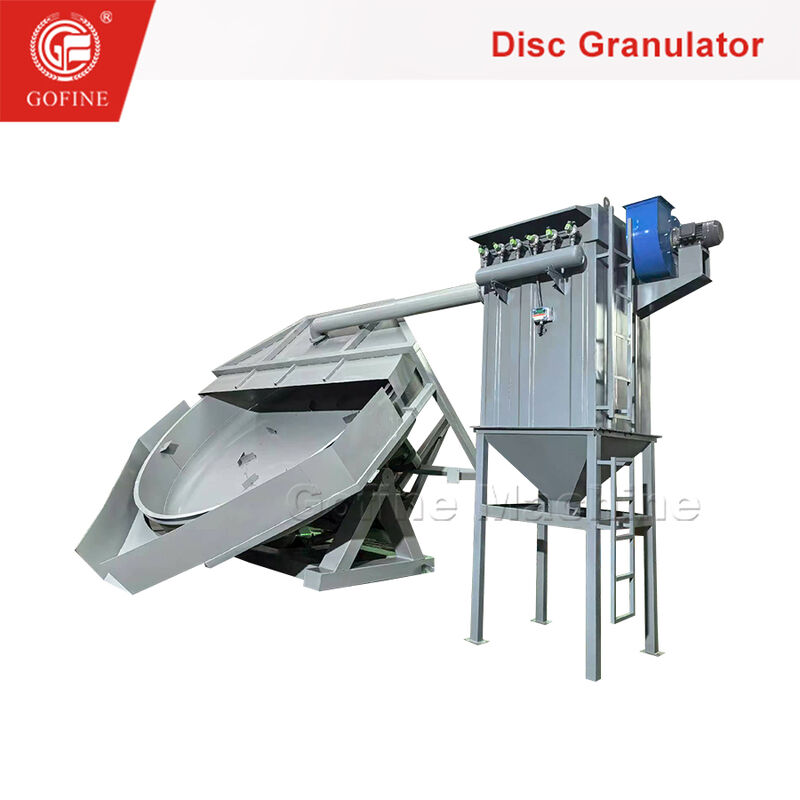

disc granulator is divided into unpowered scraper disc granulator (PQW) and powered scraper disc granulator (PQ). The two kinds of disc granulator are all have the feature of simple structure, convenient operation, the moisture of pellet can be easily control and high hardness. The disc granulator adopts massive structure, the disc bottom reinforced by multiple radiation steel plate.





Specification

Type (m) Speed the check(r/min) Production scopes (t/h) Power (kw) Adjustable scope (o) Weight (t)
Φ2.2 14.25 4-8 7.5 35-55 2.85
Φ2.5 11.81 5-10 7.5 35-55 3.25
Φ2.8 11.21 12-16 7.5 35-55 3.71
Φ3.0 11.3 15-18 11 35-55 4.35
Φ3.2 9.6 15-20 11 35-55 5.11
Φ3.6 9.1 18-24 15 35-55 6.51



welcome you to know more on our machine, look forward to your cooperation!
