Product Details:
|
| Application: | Pan Or Disk Granulator Machine | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
|---|---|---|---|
| Raw Material: | NPK Or Organic Round Granules Fertilizer | Installation: | Guide |
| Power: | 7.5 Kw | Capacity: | 1000kg/h |
| High Light: | Industrial Fertilizer Processing Machine,Disc Organic Fertilizer Granulator Machine,Organic Fertilizer Granulator Machine |
||

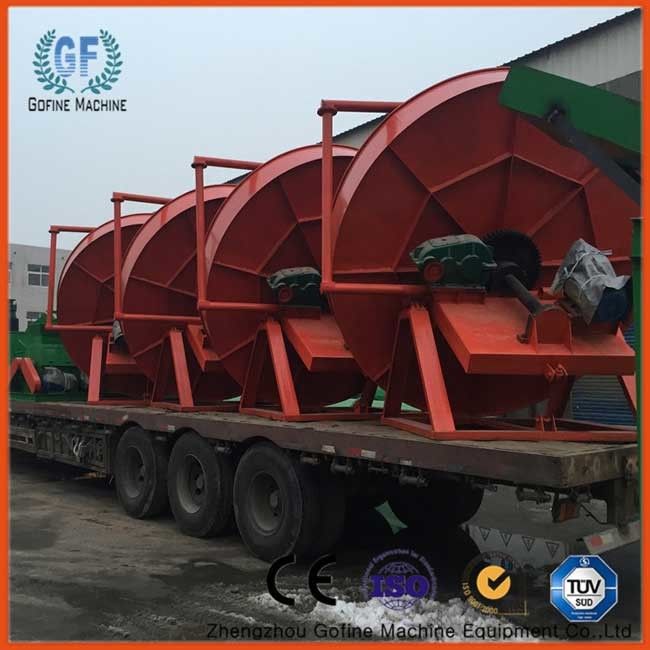

Good quality pan granulator/granulator disc /organic fertilizer granulator machine
Working principle
Water spray device is installed above the disc, makes the water spray out like the mist. The materials flow into the rotating disc through conveyor belt or other equipment, and are carried to up while the disc rotates, then fall to the lowest place of the disc, meanwhile the water mist was added in, makes the raw materials granulated in the process of rotating along the disc and falls down, as the time goes, the granule gradually become bigger.
The disc granulator is designed with angle adjustment mechanism, it can adjust the tilt angle of the disc according to the size of the granule required, normally the tilt angle of disc can be adjusted from 35° to 50°. last, the granules which is qualified float above the tilt disk, as the disc rotating, throw the granules out along the disc tangent, flows into the feed bin of the belt conveyor and enter into next procedure.
Specification
| ModelNumber |
Diameter Of Disk (mm) |
Height Of Edge(mm) |
Speed ( min ) |
Tilt Angle ( ° ) |
Motor Power (Kw) |
Capacity ( t/h ) |
| Φ2.2 | 2200 | 360 | 15 | 35°-50° | 5.5 | 0.8-2.2 |
| Φ2.5 | 2500 | 380 | 13.5 | 35°-50° | 5.5 | 1-2.5 |
| Φ2.8 | 2800 | 400 | 13 | 35°-50° | 7.5 | 1-3.0 |
| Φ3.0 | 3000 | 420 | 12.5 | 35°-50° | 11 | 2-5 |
| Φ3.2 | 3200 | 450 | 12.5 | 35°-50° | 15 | 3-6 |
Welcome you to know more on our machine, look forward to your cooperation!
