Product Details
Place of Origin: CHINA
Brand Name: Gofine
Certification: CE
Model Number: P2200
Payment & Shipping Terms
Minimum Order Quantity: 1 Set
Packaging Details: nude cargo
Delivery Time: 25 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 10 sets /monthly
Application: |
Pan Or Disk Granulator Machine |
After-sales Service Provided: |
Engineers Available To Service Machinery Overseas |
Raw Material: |
Npk Fertilizer Or Compost Fertilizer |
Installation: |
Guide |
Power: |
22kw |
Capacity: |
5000kg/h |
Application: |
Pan Or Disk Granulator Machine |
After-sales Service Provided: |
Engineers Available To Service Machinery Overseas |
Raw Material: |
Npk Fertilizer Or Compost Fertilizer |
Installation: |
Guide |
Power: |
22kw |
Capacity: |
5000kg/h |

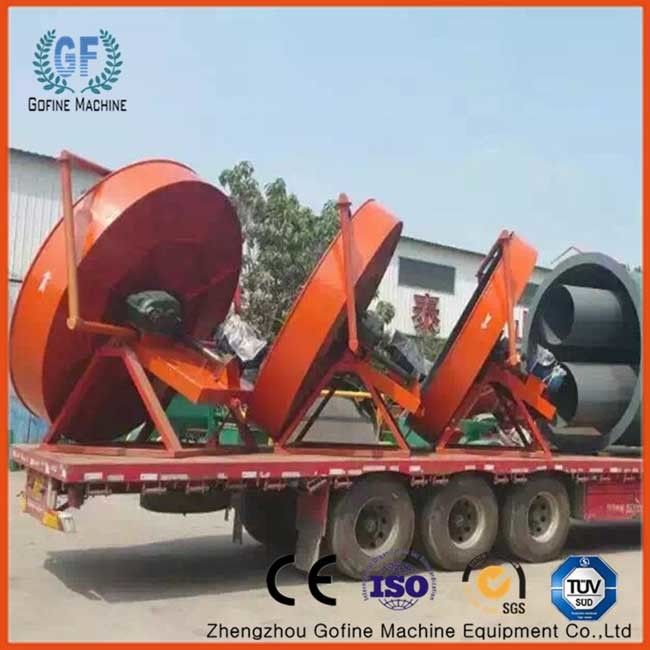

5 T per Hour NPK compound fertilizer granulation machine disc/disk /pan granulator
Working principle
1. The machine has a uniform granulation, the rate of finished products can reach more than 95%.
2. Because of the particularity of the thickness of material fiber, the rotary drum granulator has low ball forming rate, and the spiral teeth granulator can not produce materials with a nitrogen content of more than 8% (easy to stick to the wall).
3. This granulator overcomes the shortcomings of both. It can not only produce organic fertilizer, but also produce organic or inorganic mixed fertilizer., is indeed a low energy consumption and high quality granulating equipment.
4. The disc is welded with thickened carbon steel plate, its supporting equipment includes tug parts, tugs, transmission parts, wind heads and wind tails etc.
5. The machine is firm and durable, never shape changed. Together with the solid base design, it makes it run more smoothly.
6. The machine has advanced configuration, reasonable design, convenient operation, excellent performance, easy control, energy saving and nature-friendly.
Specification
ModelNumber |
Diameter Of Disk (mm) |
Height Of Edge(mm) |
Speed ( min ) |
Tilt Angle ( ° ) |
Motor Power (Kw) |
Capacity ( t/h ) |
Φ2.2 | 2200 | 360 | 15 | 35°-50° | 5.5 | 0.8-2.2 |
Φ2.5 | 2500 | 380 | 13.5 | 35°-50° | 5.5 | 1-2.5 |
Φ2.8 | 2800 | 400 | 13 | 35°-50° | 7.5 | 1-3.0 |
Φ3.0 | 3000 | 420 | 12.5 | 35°-50° | 11 | 2-5 |
Φ3.2 | 3200 | 450 | 12.5 | 35°-50° | 15 | 3-6 |
Welcome you to know more on our machine, look forward to your cooperation!
