Durable Fertilizer Processing Machine
, Round Fertilizer Granules Making Machine
, Disc Fertilizer Granules Making Machine

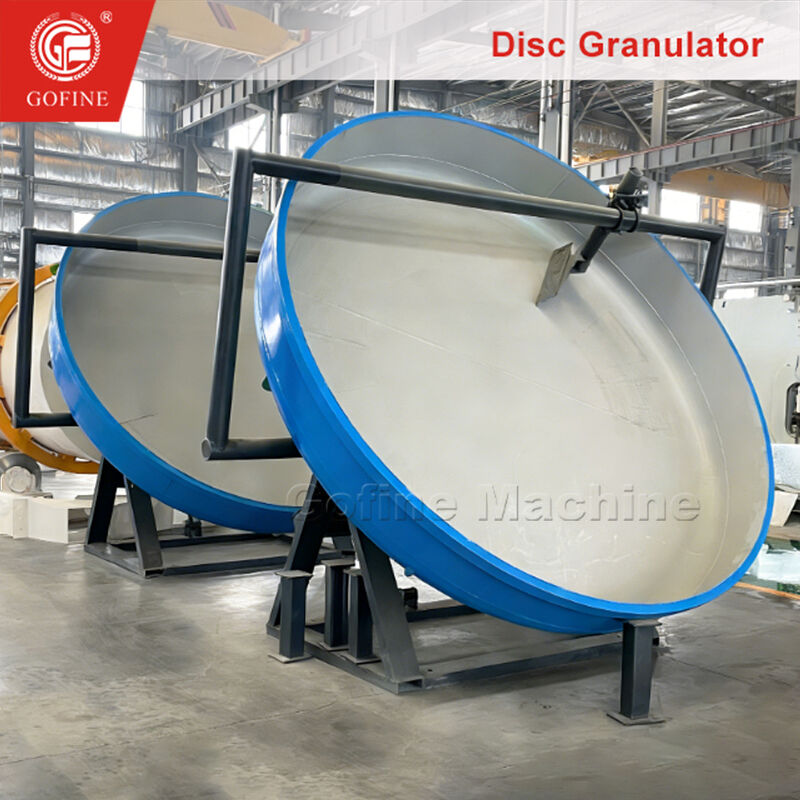

Good quality ball plate round fertilizer granules making machine
Feature of Round fertilizer granules making machine
1. Overall disc structure, granulation rate reaches above 93%.
2. The design of granulation plate is convenient for intermittent continuous production, which greatly reduces the labor intensity and improves labor efficiency.
3. The reduction gears and motor using the flexible belt driving, smooth start, slowing impact, extend equipment service life.
4. The disc bottom adopts multiple steel plates which are firm, durable, not deforming.
5. The design of disc bottom is thicker, heavier and more stable, not need to be fixed by anchor bolts.
6. Granulator’s main gears adopt high temperature quenching technology, doubling the service life.
7. The granulator disc lining adopts the high strength glass steel which is antiseptic and durable.
8. The granulator is with the high uniform granulation, high granulation rate, long service life which is ideal equipment for majority of users.
Working flow for your information
Raw materials fermentation (optional)( compost turning machine). input ( If blocked, use chain crusher to deal with ) ---- granulation -- drying--cooling--screening (select the right sieving hole diameter)----finished granules---- the next process (optional equipment:
1, screening machine: the size of the granules will be more accurate.
2, drying machine (to dry the finished fertilizer)
3, cooling machine(fast cooling of finished fertilizers)
4, coating machine: make the appearance of the granules more good
5, weighing and package: facilitate the sale and transportation of products
Specification
| Model |
Inner diameter (mm) |
Side height (mm) |
Volume(m3) |
Rotation speed (r/min) |
Motor power(kw) |
Production Capacity (t/h) |
| ZL08 |
800 |
200 |
0.25 |
25 |
1.5 |
0.1-0.2 |
| ZL10 |
1000 |
220 |
0.4 |
21 |
2.2 |
0.3-0.5 |
| ZL15 |
1500 |
300 |
1.1 |
17 |
5.5 |
0.5-0.8 |
| ZL25 |
2500 |
500 |
2.5 |
13.6 |
7.5 |
1-1.5 |
| ZL28 |
2800 |
550 |
3.7 |
13.6 |
11 |
1-2.5 |
| ZL30 |
3000 |
550 |
4.2 |
11 |
11 |
2-3 |
| ZL32 |
3200 |
600 |
4.8 |
10 |
11 |
2-3.5 |
| ZL36 |
3600 |
600 |
6.1 |
10 |
15 |
3-5 |
Welcome you to know more on our machine, look forward to your cooperation!
