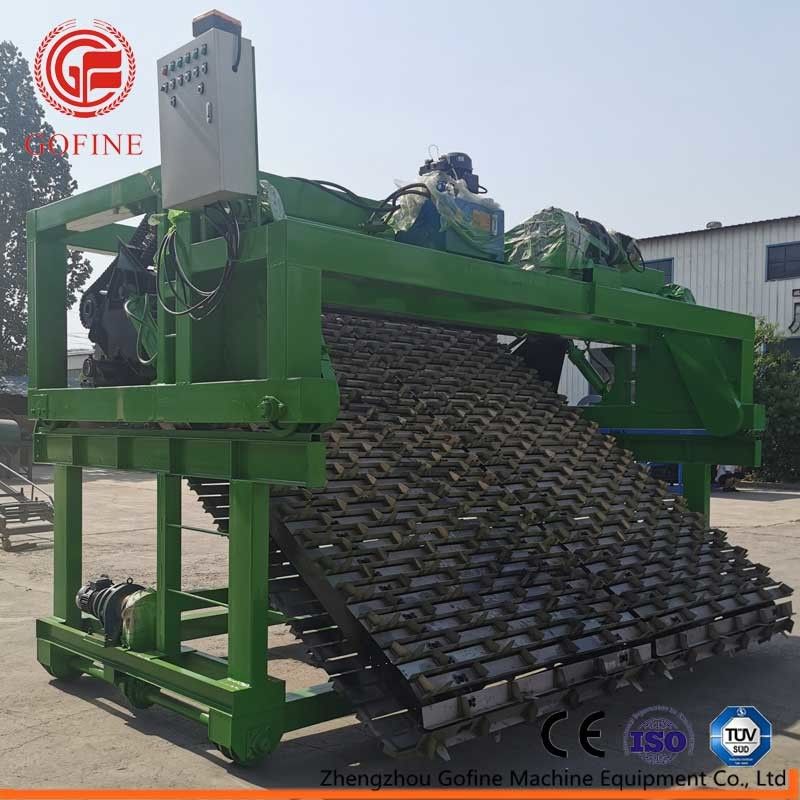

Large Scale Pig Farm 2m Width Animal Manure Fermenter

Large-scale pig farm manure treatment and fermentation equipment chain composting machine

1. Main body configuration:
It includes walking fermentation tank body, walking track, power take-off device, turning and dumping part and turning tank device (also called transfer truck, mainly used in the case of multi-tank use). The working part of turning and dumping adopts advanced roller drive, which can be lifted or not.
2. Special configuration:
(1) The centralized control of the control cabinet can realize manual or automatic control functions.
(2) Equipped with soft starter, low impact load when starting.
(3) Equipped with gear hydraulic lifting system.
(4) The teeth are strong and durable, and have a certain function of crushing and mixing materials.
(5) Limit travel switch, play the role of safety and limit.

Features

1. Adopt chain drive, rolling support pallet structure, small turning resistance, power saving and energy saving, suitable for deep groove operation.
2. The flipping pallet is equipped with a flexible tensioning and elastic shock absorption system to protect the transmission system and working parts.
3. Removable wear-resistant curved tooth blades are installed on the flipping plate, which has strong crushing ability and good oxygenation effect of the pile.
4. When turning, the material stays on the pallet for a long time, throws away at a high level, and has sufficient contact with the air, which is easy to reduce moisture.
5. The horizontal and vertical displacement can realize the turning operation at any position in the tank, and the maneuverability is flexible.
6. The lifting and lowering of the working parts are controlled by hydraulic system, which is flexible and fast.
7. It can remotely control the machine's operations of forwarding, traversing, tossing and fast backwards to improve the operating environment.
8. Optional trough type material distributor, automatic discharge device, solar fermentation room and ventilation aeration system, etc.
9. Equipped with a shifting machine for moving machine can realize multi-slot operation of a turning machine, saving investment.

Specifications
