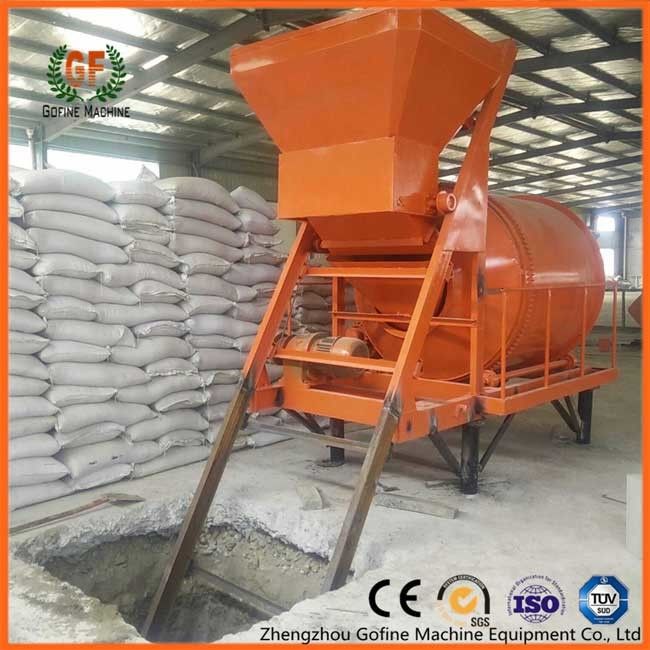

Water Soluble 1000 T / Month NPK Compound Fertilizer Production Line

Product Details

Place of Origin: CHINA

Brand Name: GOFINE

Certification: CE

Model Number: S1000

Payment & Shipping Terms

Minimum Order Quantity: 1 unit

Packaging Details: FILM PACKING

Delivery Time: 15 WORKING DAYS

Get Best Price
Product Details
Highlight:

npk fertilizer production plant

,

npk granulator machine

Liquid Or Solid:
Solid Powder Soluble Fertilizer
Machine Materials:
Carbon Steel Or Stainless Steel
Capacity:
1000 T/month
Automatic:
Semi-automatic
Model:
S1000
Name:
Fertilizer Production Line
Liquid Or Solid:
Solid Powder Soluble Fertilizer
Machine Materials:
Carbon Steel Or Stainless Steel
Capacity:
1000 T/month
Automatic:
Semi-automatic
Model:
S1000
Name:
Fertilizer Production Line
Product Description

Water soluble fertilizer production line  equipment Fully automatic



PRODUCTION PROCESS

Ingredients process
Manually pour 4 or more than 4 kinds of raw materials into the designated low-level raw material bin ------ lifted to the high-level batching storage bin by the automatic bucket feeder -----4 kinds of materials are added in sequence according to the equipped amount Proportioning hopper --- After the batching is completed, the discharge door of the proportioning hopper opens and unloads automatically --------The materials in the proportioning hopper enter the mixer and are evenly mixed ----- The mixed materials are mixed The pneumatic discharge door enters the temporary storage silo of mixed materials --- the mixed materials are lifted by the vacuum feeding machine to the material silo to be packaged. If the material bin to be packaged is in a low material level state, the next batching cycle is completed.

Packaging process
Wait for the packaged materials to enter the automatic quantitative packaging scale to complete the set weight weighing (weighing and manual bagging) ---------manually issue the cutting instruction to complete the material filling -----After filling, the material passes through the belt conveyor Transfer to the automatic sewing machine station ------- manual assistance to guide automatic sewing ------ start the next packaging cycle.



materials suggested

Compounding materials: magnesium sulfate, calcium nitrate, potassium nitrate, potassium phosphate, potassium sulfate, potassium chloride, etc. For better use of the equipment, the raw materials used are as fine crystal materials as possible.
Blending capacity: ≥5 tons/hour
Packing capacity: 5kg≥2 tons/hour, 10kg≥3.5 tons/hour
Measurement accuracy: ±0.5%
Power supply: 380V 50Hz
Air consumption: 15m3/min
