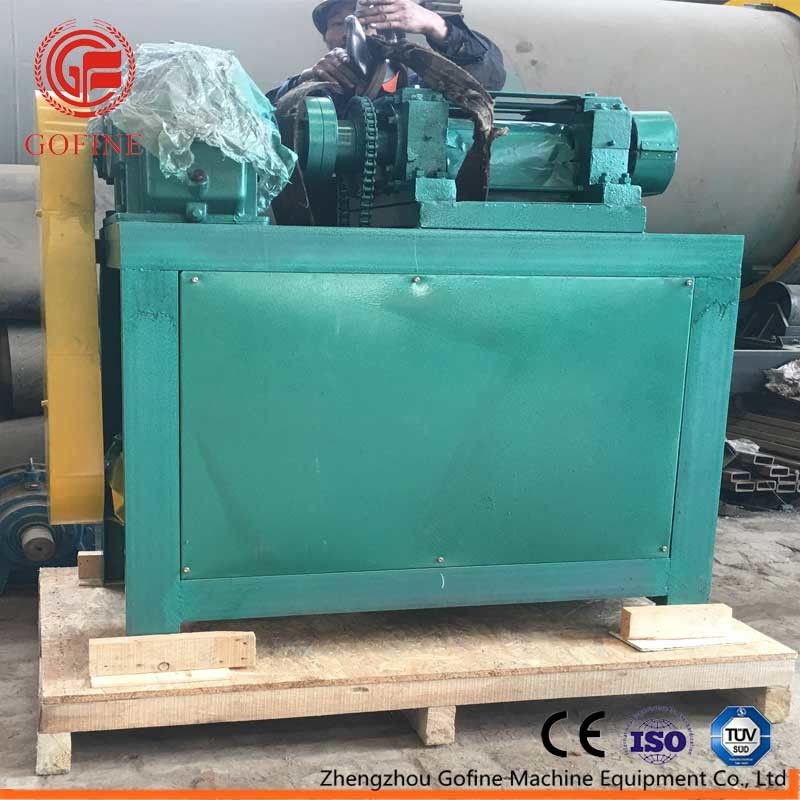

Fertilizer 2T/H Pair Dry Roll Extrusion Granulator Alloy Steel

Product Details

Place of Origin: CHINA

Brand Name: GOFINE MACHINE

Certification: CE

Model Number: DZ-1

Payment & Shipping Terms

Minimum Order Quantity: 1 Set

Price: USD3777-USD 9777/UNIT

Packaging Details: film packed in Container or plywooden case

Delivery Time: 15 working days

Supply Ability: 10set/monthly

Get Best Price
Product Details
Highlight:

2T/H Roll Extrusion Granulator

,

2T/H Dry Granulator

,

Alloy Steel Roll Extrusion Granulator

MATERIALS:
SS Or Ordinary STEEL
CAPACITY:
1-2T/H
FINAL GRANULES SIZE:
OVAL SHAPE DIAMETER 3-10MM
Warranty:
1 Year
Rollers Materials:
Alloy Steel
Weight:
800-1200 Kg
MATERIALS:
SS Or Ordinary STEEL
CAPACITY:
1-2T/H
FINAL GRANULES SIZE:
OVAL SHAPE DIAMETER 3-10MM
Warranty:
1 Year
Rollers Materials:
Alloy Steel
Weight:
800-1200 Kg
Product Description

1-2T/H Pair-roll extrusion granulator Dry granulator Small granulator



1. introduction



Technical advantages
1. Compact structure, convenient operation, standard cycloidal pin wheel or planetary gear reducer, large output torque;
2. According to customer requirements, it can adopt fixed speed output, or stepless speed regulation methods such as frequency conversion speed regulation, electromagnetic speed regulation, mechanical speed regulation, etc.
3. Balanced extrusion force and high particle strength;
4. The particle size can be easily changed by changing the template;
5. Wide application range, easy replacement of wearing parts and easy cleaning;


The shape and size of the ball socket on the roll skin of the roller extrusion granulator can be selected according to user needs, and there are a wide range of options. The ball press shapes include pillow shape, semi-circular pellet shape, rod shape, tablet shape, walnut shape, The oblate spherical shape and the square bar shape are currently both oblate spherical shapes.


The working principle of the roller squeeze granulator: The belt and pulley are driven by the motor, and transmitted to the driving shaft through the reducer, and synchronized with the driven shaft through the split gear, and work in opposite directions. The material is added from the hopper, formed by the pair of rollers, demoulded and pelletized, and passed through a pair of chains, transferred to the crushing sieve studio, under the sieve and separated the finished particles (balls), and then the returned material is mixed with the new material. Then granulate. With the continuous rotation of the motor and the continuous entry of materials, mass production can be realized.



2. specifications

type power capacity feeding moisture
Z-1 11KW 1T/H 2%-5%
Z-1.5 15KW 1.5T/H 2%-5%
Z-2 18.5KW 2T/H 2%-5%
Z-3 22KW 3T/H 2%-5%
