Product Details
Place of Origin: CHINA
Brand Name: GOFINE MACHINE
Certification: CE
Model Number: L400
Payment & Shipping Terms
Minimum Order Quantity: 1 Set
Packaging Details: film packed in Container or plywooden case
Delivery Time: 15 working days
Feature: |
Composting Or Fermentation For Poultry Manure |
Capacity: |
100-500m3/h |
Materials: |
Q235 Carbon Steel |
Power: |
24-45 Kw |
Hydarlic: |
Hydraulic Support |
PLC Control: |
Remote PLC Control |
Feature: |
Composting Or Fermentation For Poultry Manure |
Capacity: |
100-500m3/h |
Materials: |
Q235 Carbon Steel |
Power: |
24-45 Kw |
Hydarlic: |
Hydraulic Support |
PLC Control: |
Remote PLC Control |

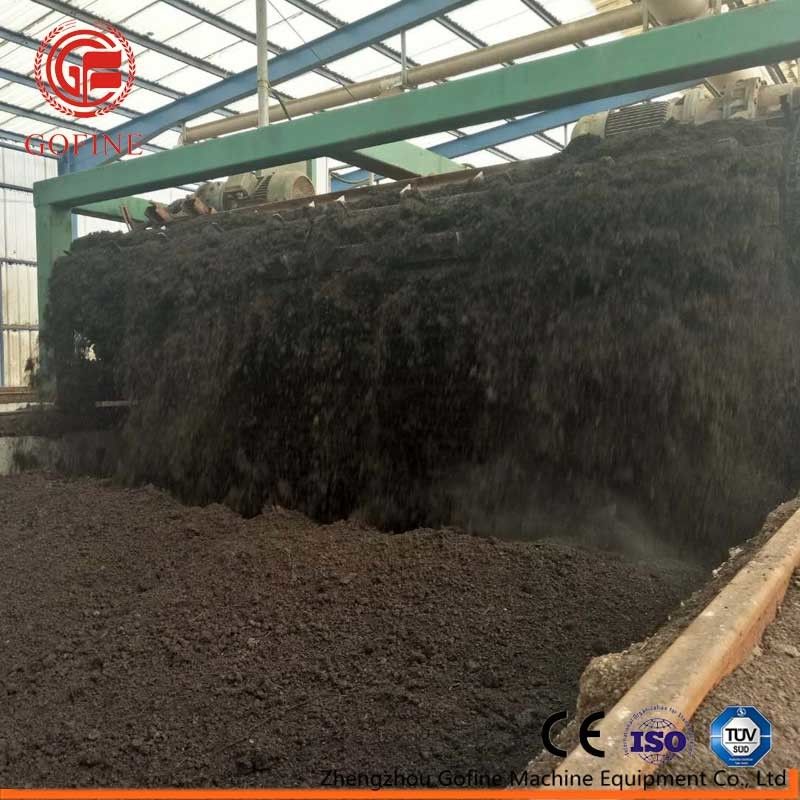

Chain plate turning machine for Poultry manure and Sludge fermentation
1. introduction
The rake turning machine is also known as the guide rail turning and throwing machine, the pile turning machine, the manure turning machine, and the organic fertilizer turning machine. It is used for the fermentation and turning of organic wastes such as livestock and poultry manure, sludge garbage, sugar factory filter mud, slag cake and straw sawdust. It has a crushing function, which greatly saves time and labor and makes the production efficiency of organic fertilizer plants. And product quality has been significantly improved, and the cost has been greatly reduced. Some auxiliary facilities can also be added, such as automatic sprinkling devices.
The manure dumper adopts a four-wheel walking design, which can be driven forward, backward, and turned by one person. When driving, the whole vehicle rides on the long strip of fertilizer that was piled up in advance. The rotating knife shaft hung under the frame performs the mixing, fluffing, and shifting of the fertilizer-based raw materials. After the car passes by, it becomes a new strip. Shaped piles. It can be carried out in an open field or in a workshop.
The organic fertilizer dumper uses a diesel engine as the power source, transmits motion through power transmission, uses a scimitar to rotate the material, and the driver controls the work of the dumper.
Application scope of organic fertilizer dumper:
1. Bar stack: The width cannot exceed the width of the equipment, the height can be appropriately increased within 100mm, and the length is unlimited.
2. Leave no less than 10 meters of empty space at both ends of the pile to facilitate turning, and the pile spacing is more than 1 meter.
3. This machine is only a walkable pile turning machine, and cannot be used as a walking vehicle or a heavy-duty vehicle.
4. The work area must be on a flat surface, and the ground must be concrete.
2. specifications
type | power | capacity |
L2500 | 25KW | 100-150M3/H |
L3000 | 32kw | 200-250m3/h |
