Product Details:
|
| Application: | Chicken Manure | Feature: | New Granulating Machinew With More Than 95% Ratio |
|---|---|---|---|
| Capacity: | 3-5T/H | Weight: | 1.5T |
| Power(W): | 37-110kw | ||
| High Light: | Wet Stirring Fertilizer Granulator Machine,Manure Waste Fertilizer Granulator Machine,5T/H Fertilizer Granulator Machine |
||
Product Details
The main working method is wet granulation of agglomerates. Through quantitative water or steam, the basic fertilizer is fully chemically reacted in the cylinder after the humidity is adjusted. Under the quantitative liquid phase condition, the rotation of the cylinder can generate the material particles. The squeezing force reunites into a ball.

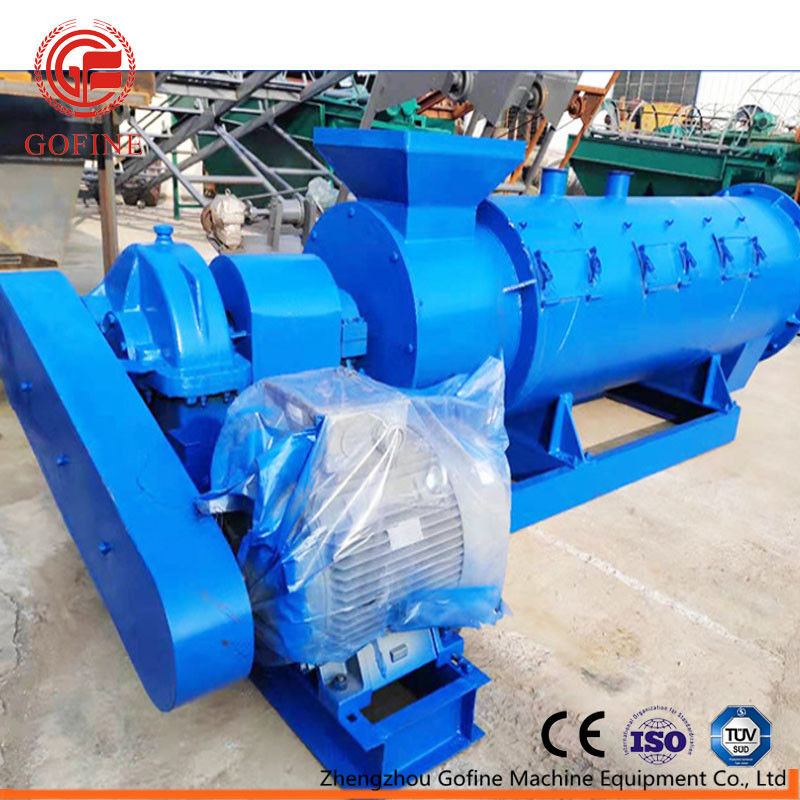

The rotary drum stirring tooth granulator uses the mechanical stirring force of high-speed rotation and the resulting aerodynamic force to continuously realize the processes of mixing, granulating, spheroidizing, and densification of fine powder materials in the machine, so as to achieve granulation. purpose. This kind of granulation method makes the pellets have a high sphericity and beautiful granules.
Application range of rotary drum stirring tooth two-in-one granulator:
Granulation usefulness for livestock manure, compost fertilizer, green manure, sea manure, cake fertilizer, grass charcoal, soil and miscellaneous fertilizer, three wastes, microorganisms, municipal solid waste, and organic fermented fertilizer. This machine is especially suitable for the granulation of light and fine powder materials. The finer the basic particles of the fine powder material, the higher the sphericity of the particles, and the better the ball quality. Typical application materials: chicken manure, pig manure, cow manure, charcoal, clay, kaolin, etc.
| Model | JZ-60 | JZ-80 | JZ-100 | JZ-120 | JZ-150 |
| Installation angle | 2*-2.5° | 2*-2.5° | 2*-2.5° | 2*-2.5° | 2*-2.5° |
| Grainy yield (t/h ) | 1-1.5 | 1.5-2 | 2-3 | 3-5 | 5-8 |
| power(kw) | 37 | 55 | 75 | 90 | 110 |
| Feed moisture | 20%-40% | 20%-40% | 20%-40% | 20%-40% | 20%-40% |
| Feed Size(mesh) | 50 | 50 | 50 | 50 | 50 |
| Shape size(mm) | 4100*1600*1150 | 4250*1850*1300 | 4700*2350*1600 | 4900*2550*1800 | 5500*2800*2000 |
