SS Calcium Compound Fertilizer Production Line 1mm 10t/H

Product Details

Place of Origin: CHINA

Brand Name: Gofine

Certification: CE

Model Number: LF650

Payment & Shipping Terms

Minimum Order Quantity: 1 Set

Packaging Details: film packed in Container or plywooden case

Get Best Price
Product Details
Highlight:

SS Calcium Compound Fertilizer Production Line

,

1mm Compound Fertilizer Production Line

,

10t/H Compound Fertilizer Production Line

Use:
Single Fertilizer Granules Like Calcium Fertilizer
Materials:
Normal Steel Or SS
Feeding Size:
Less Than 8mm
Final Granules Size:
0.5-1mm
Feeding Moisture:
Less Than 6%
Warranty:
1 Year And Life Long Serivce
Use:
Single Fertilizer Granules Like Calcium Fertilizer
Materials:
Normal Steel Or SS
Feeding Size:
Less Than 8mm
Final Granules Size:
0.5-1mm
Feeding Moisture:
Less Than 6%
Warranty:
1 Year And Life Long Serivce
Product Description

Calcium Fertilizer Granules Crushing into Powder Grinder or Crusher with cheaper price



introduction

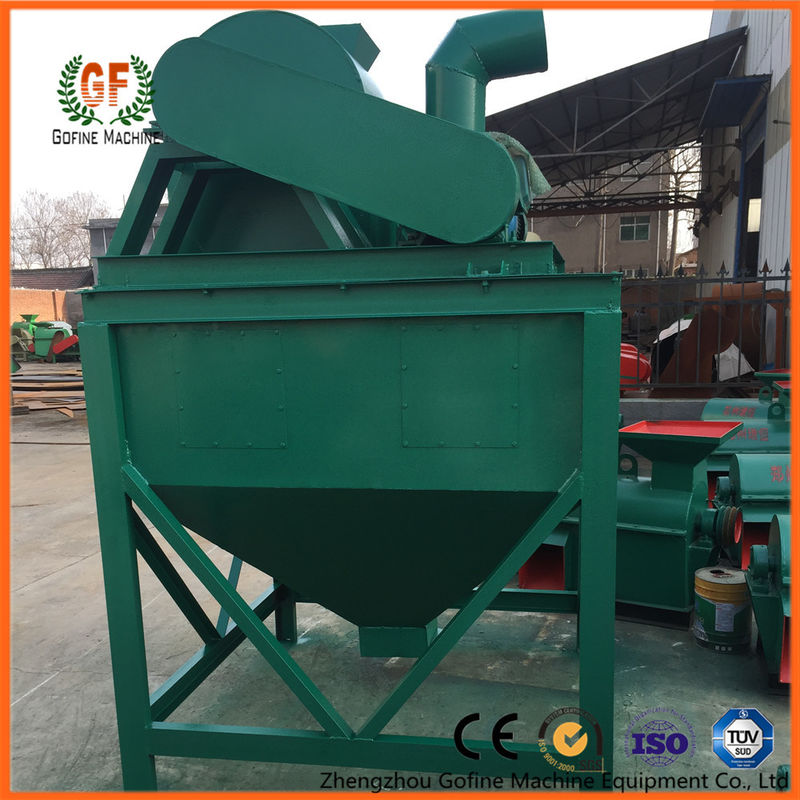

The transmission mode of the cage grinder is divided into double-sided motor transmission. The cylinder is welded on a frame welded by channel steel, and the rotor is inside the cylinder. The main shaft is respectively seated on both sides of the cylinder and connected with the motor through a belt. The inlet is opened on one side of the cylinder, and the outlet is under the shelf. The whole pulverizer is supported by four legs. When the pulverizer is in production, the motor drives the two concentric main shafts to rotate in opposite directions. The material enters the inner cage through the feed port, and then enters the outer cage after being crushed. The material is continuously impacted by the steel rod on the cage between the two rotating cages and is crushed, so that the material powder is more broken and the effect is better.





technical parameters



type power feeding moisture capacity final size
LF600 13X2KW Less than 20% 3-5t/h 0.5-1mm
LF800 18.5X2KW Less than 20% 6-10t/h 0.5-1mm
