Chemical Compound Fertilizer Production Line 0.5mm Fertilizer Granulator Machine

Single Chemical Fertilizer Granules or Particles Crushing into Powder Machine from China

introduction

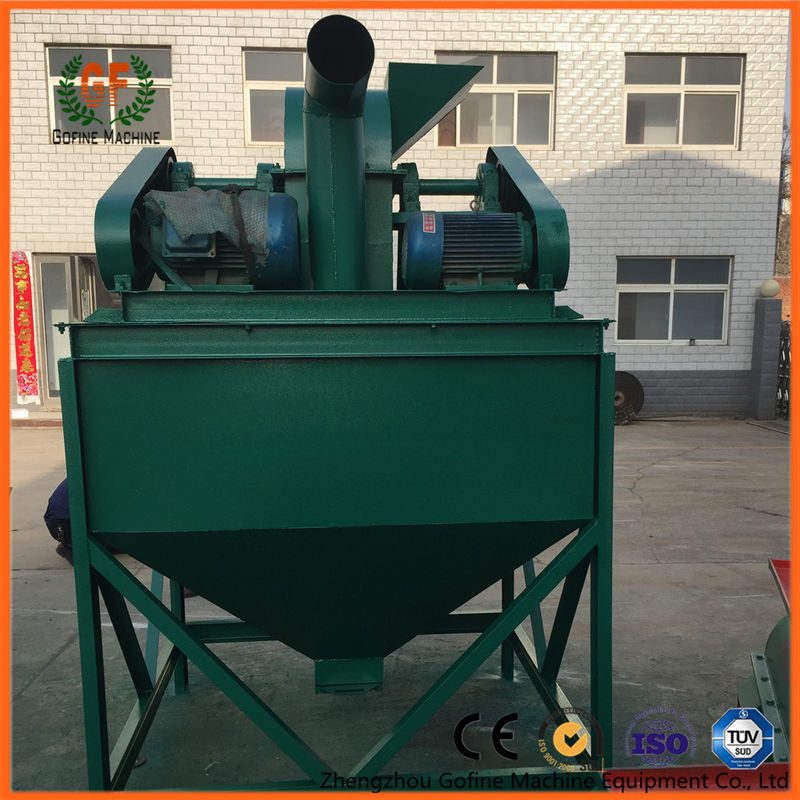

The transmission mode of the cage grinder is divided into double-sided motor transmission. The cylinder is welded on a frame welded by channel steel, and the rotor is inside the cylinder. The main shaft is respectively seated on both sides of the cylinder and connected with the motor through a belt. The inlet is opened on one side of the cylinder, and the outlet is under the shelf. The whole pulverizer is supported by four legs. When the pulverizer is in production, the motor drives the two concentric main shafts to rotate in opposite directions. The material enters the inner cage through the feed port, and then enters the outer cage after being crushed. The material is continuously impacted by the steel rod on the cage between the two rotating cages and is crushed, so that the material powder is more broken and the effect is better.

The cage crusher is mainly used for fine crushing operations, and it also plays a role of uniform mixing during crushing. Suitable for brittle materials, especially suitable for powder materials to be broken up after agglomeration. The cage crusher can crush various single fertilizers with a moisture content of less than 6%, and is especially suitable for materials with higher hardness. The machine is designed according to the principle of impact crushing. The two sets of cage rods inside and outside rotate towards each other at high speed. The material is crushed by the cage rods from the inside out. It has simple structure, high crushing efficiency, stable operation, easy cleaning and convenient maintenance. And other characteristics.

technical parameters
