Zhengzhou Gofine Machine Equipment CO., LTD richard@zzgofine.com 86--18239972076
Product Details
Place of Origin: China
Brand Name: Gofine
Certification: ISO9001
Model Number: FJ20
Payment & Shipping Terms
Minimum Order Quantity: 1 Set
Price: Negotiation
Packaging Details: Nude Package
Delivery Time: 8 work-days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 10 set/monthly
Capacity: |
2-10 T/H |
Main Power: |
23.7 Kw |
Voltage: |
380 V 50 Hz |
Size Of Fermenting Tank: |
3*1.55 M |
Lifting Height: |
0.8-1.2 M |
Installation: |
Support |
Capacity: |
2-10 T/H |
Main Power: |
23.7 Kw |
Voltage: |
380 V 50 Hz |
Size Of Fermenting Tank: |
3*1.55 M |
Lifting Height: |
0.8-1.2 M |
Installation: |
Support |

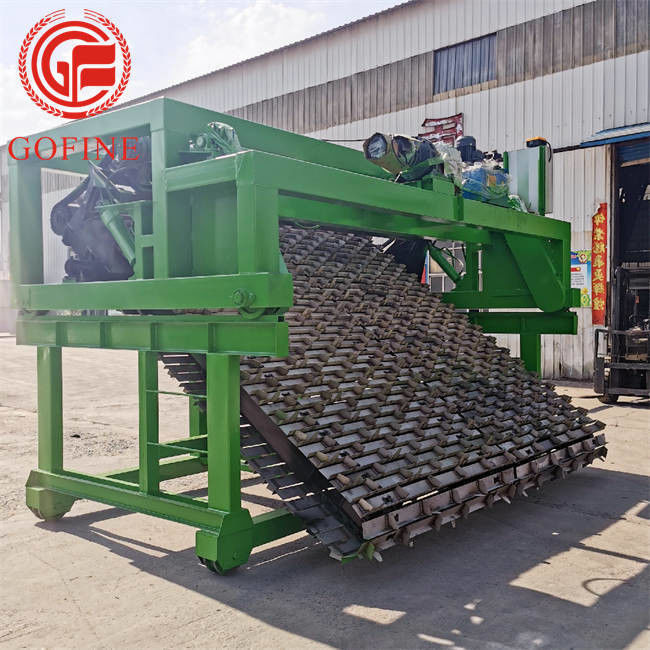

2m Depth Compost Fertilizer Production , Animal Feice Compost Machine
Product Introduction
Animal feice compost machine is used for large-scale farms, sludge treatment, soil remediation, large organic fertilizer plant, etc. Our chain type compost turner with low energy consumption and intelligent control can be customized of 2 meters wide - 20 meters wide and 1.5 meters high - 5 meters high according to customer size. During the material turning process, under the action of the horizontal and vertical walking mechanisms, the fermentation material will be displaced in the pool, and the displacement distance is between 1 m and 2 meters.
Product Parameters
Equipment type | FJ-20 | FJ-40 | Remarks |
Power (kw) | 13~ 27 | 30~ 45 | |
Flip width (m) | 2 | 3.7 |
The width of the tank stack is the effective width in the tank. |
Walking speed (m/mirl) | 0~ 6.3 | 0~ 6.3 |
Traveling speed is adjusted according to the running load of the equipment. |
Throwing/turning distance of compost (m) | 3.1-3.5 | 3.6-3.8 |
Distance determination based on site quantity and time |
Remote control distance (m) | ≤100 | ≤100 |
Determine according to workshop environment |
Capacity (m3/h) | 50~ 140 | 150~ 300 |
Detailed Photos
