Product Details
Place of Origin: Henan, China
Brand Name: Gofine
Certification: CE
Model Number: 1.6×16
Payment & Shipping Terms
Minimum Order Quantity: 1 Set
Price: Negitionable
Packaging Details: plywood case
Delivery Time: 1-3Sets/15days
Payment Terms: L/C, Western Union, T/T, MoneyGram
Supply Ability: 15Sets/Month
Name: |
Rotary Vacuum Drum Dryer |
Capacity: |
6-8t/h |
Power: |
15KW |
Inlet Air Temperature: |
≥300C |
Working Speed: |
6r/min |
Type: |
Organic Fertilizer Making Machine |
Name: |
Rotary Vacuum Drum Dryer |
Capacity: |
6-8t/h |
Power: |
15KW |
Inlet Air Temperature: |
≥300C |
Working Speed: |
6r/min |
Type: |
Organic Fertilizer Making Machine |

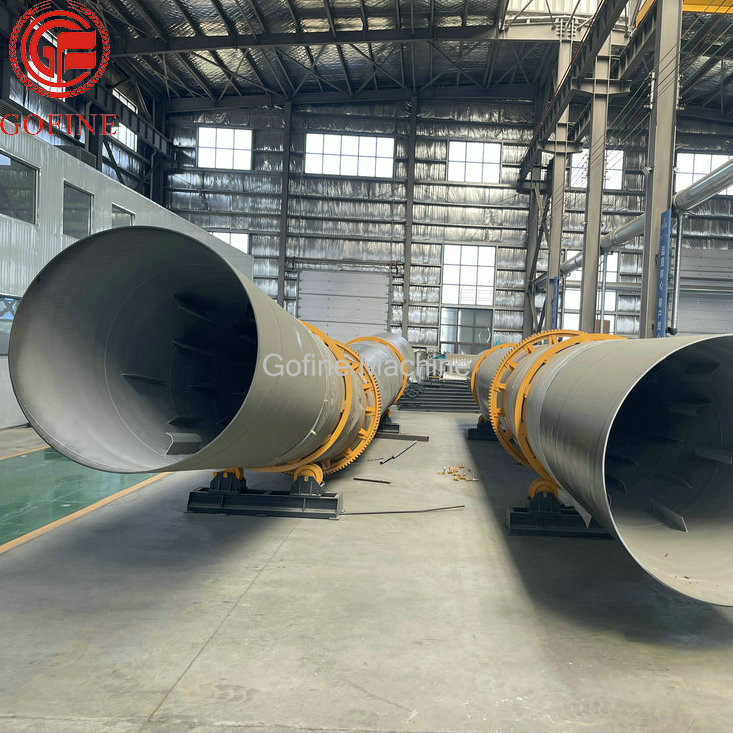

6-8T/H Rotary Vacuum Drum Dryer Organic Fertilizer Making Machine
The heat sources of the dryer is from the combustion train. Because of the tilting device of dryer, when the materials enter into the body from the feeding device, i will flow to the bottom end under the infuence of gravity, as the drier is in an inclined position. This process makes the material well-distributed in the body, then ensure the heat exchange with the heat wind. After repeated cycle with this process,the moisture content will be dried and discharged from the dryer.
Parameters Of Rotary Vacuum Drum Dryer
| Item |
Power (KW) |
Inlet air temperature (.C) |
Working speed (r/min) |
Capacity (t/h) |
| 0.8×8 | 5.5 | ≥300 | 6 | 1-2 |
| 1.0×10 | 7.5 | ≥300 | 6 | 2-4 |
| 1.2×12 | 7.5 | ≥300 | 6 | 3-5 |
| 1.5×15 | 11 | ≥300 | 6 | 4-6 |
| 1.6×16 | 15 | ≥300 | 6 | 6-8 |
| 1.8×18 | 22 | ≥300 | 5.8 | 7-12 |
| 2.0×20 | 37 | ≥300 | 5.5 | 8-15 |
| 2.2×22 | 37 | ≥300 | 5.5 | 8-16 |
| 2.4×24 | 45 | ≥300 | 5.2 | 14-18 |
it is used for drying a certain humidity and size of granular materials, such as yellow sand used in dry powder and mortar, various specifications of sand used in a foundry industry blast, furnace slag used in building materials and cement industry, clay in a small size, small materials which have no chemical changes, resists high temperature and are with flyblown dust, used in chemical industry.
Details of Rotary Vacuum Drum Dryer
