Product Details
Place of Origin: Henan, China
Brand Name: Gofine
Certification: CE
Model Number: 1.8×18
Payment & Shipping Terms
Minimum Order Quantity: 1 Set
Price: Negitionable
Packaging Details: plywood case
Delivery Time: 1-3Sets/15days
Payment Terms: L/C, Western Union, T/T, MoneyGram
Supply Ability: 15Sets/Month
Name: |
Fertilizer Processing Machine |
Capacity: |
7-12t/h |
Power: |
22KW |
Inlet Air Temperature: |
≥300C |
Working Speed: |
5.8r/min |
Feature: |
Energy Saving |
Name: |
Fertilizer Processing Machine |
Capacity: |
7-12t/h |
Power: |
22KW |
Inlet Air Temperature: |
≥300C |
Working Speed: |
5.8r/min |
Feature: |
Energy Saving |

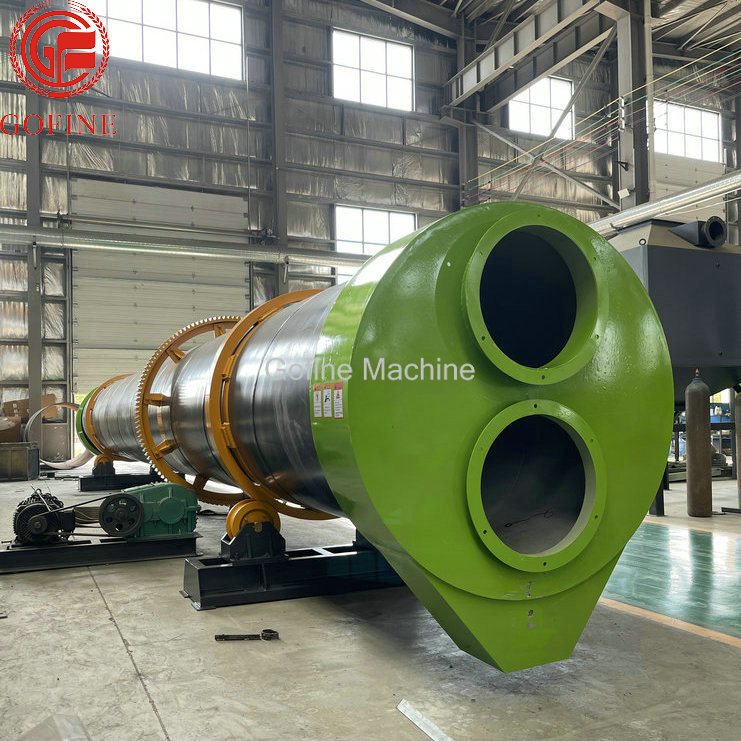

1.8×18 Fertilizer Processing Machine Rotating Vacuum Dryer Energy Saving
Introduction of Fertilizer Processing Machine
Rotating Vacuum Dryer is widely used in the field of building materials, metallurgies, chemical industry, cement and so on. it can dry slag, coal powder, mining powder, clay, sand, limestone and so on. It is made into rotary body, lifting blade, driving device, supporting device etc. It adopt the reasonable operation parameters and it also reduce the coal and power consumption by more than 10- 15% increases the output by more than 10- 15% compared with the general dryers.
Parameters of Fertilizer Processing Machine
| Item |
Power (KW) |
Inlet air temperature (.C) |
Working speed (r/min) |
Capacity (t/h) |
| 0.8×8 | 5.5 | ≥300 | 6 | 1-2 |
| 1.0×10 | 7.5 | ≥300 | 6 | 2-4 |
| 1.2×12 | 7.5 | ≥300 | 6 | 3-5 |
| 1.5×15 | 11 | ≥300 | 6 | 4-6 |
| 1.6×16 | 15 | ≥300 | 6 | 6-8 |
| 1.8×18 | 22 | ≥300 | 5.8 | 7-12 |
| 2.0×20 | 37 | ≥300 | 5.5 | 8-15 |
| 2.2×22 | 37 | ≥300 | 5.5 | 8-16 |
| 2.4×24 | 45 | ≥300 | 5.2 | 14-18 |
Details of Fertilizer Processing Machine
