Sand Portable Compact Trommel Screener Fertilizer Rotary Trommel Screen

Sand Portable Compact Trommel Screener Fertilizer Rotary Trommel Screen
Sand Portable Compact Trommel Screener Fertilizer Rotary Trommel Screen Sand Portable Compact Trommel Screener Fertilizer Rotary Trommel Screen

Large Image :  Sand Portable Compact Trommel Screener Fertilizer Rotary Trommel Screen

Product Details:
Place of Origin: Henan, China
Brand Name: Gofine
Certification: CE
Model Number: GS1X3
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negitionable
Packaging Details: plywood case
Delivery Time: 1-3Sets/15days
Payment Terms: L/C, Western Union, T/T, MoneyGram
Supply Ability: 25Sets/Month

Sand Portable Compact Trommel Screener Fertilizer Rotary Trommel Screen

Description
Name: Compact Trommel Screener Application: Sand And Fertilizer
Power: 3kw Working Speed: 21rpm
Capacity: 2-3T/H Other Name: Rotary Trommel Screen
High Light:

Sand Portable Compact Trommel Screener

,

Fertilizer Compact Trommel Screener

,

Fertilizer Rotary Trommel Screen

Sand Portable Compact Trommel Screener Fertilizer Rotary Trommel Screen



Introduction



the main structure of Compact Trommel Screener is cylindrical drum, which is inclined and installed on the frame. The geared motor is connected to the drum device through a coupling, the driving drum will rotate around the axis direction. When the materials enters the drum device, due to the tilt and rotation of the drum device, the materials on the screen surface is overturned and rolled so that the fine material is discharged through the discharge port at the bottom of the back end of the drum of trommel screen, and the coarse material is discharged through the discharge port at the tail of the drum discharge.



Self-cleaning cage Compact Trommel Screener rotates reasonably the central separation drum of the equipment through the gearbox type deceleration system. During operation, the material enters the cylinder net from the upper end of the central separation cylinder. During the rotation of the separation cylinder, the fine material is separated from the top to the bottom through the screen interval composed of annular flat steel, and the coarse material is separated from the lower end of the separation cylinder discharged into the pulverizer.



During the separation process, through the relative movement of the screen cleaning mechanism and the screen body, the screen body is continuously "combed" by the screen cleaning mechanism, so that the screen body is always kept clean during the whole working process. , the screening efficiency will not be affected by the clogging of the screen holes. It is custom made according to different materials;



Parameters of Compact Trommel Screener



model

Power

kw

Working speed rpm

Capacity

T/H

GS1X3 3 21 2-3
GS1.2X4 4 18 3-5
GS1.5X6 5.5 16 6-10
GS1.8X7 11 13 12-15
GS2.0X8 15 12 15-20

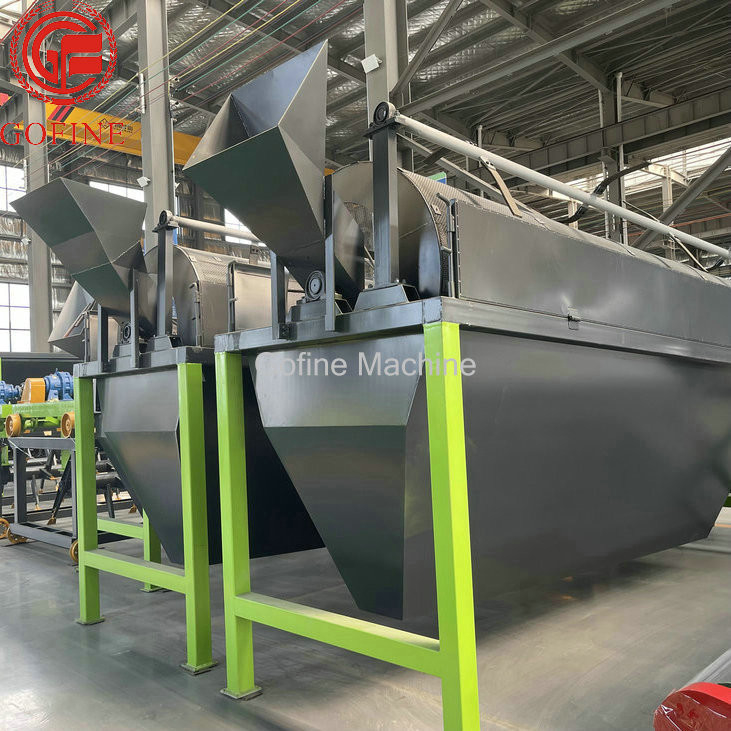

Pictures of Compact Trommel Screener



Sand Portable Compact Trommel Screener Fertilizer Rotary Trommel Screen 0

Sand Portable Compact Trommel Screener Fertilizer Rotary Trommel Screen 1
