12-15 TPH Compost Fertilizer Production Electric Trommel Screen

12-15 TPH Compost Fertilizer Production Electric Trommel Screen
12-15 TPH Compost Fertilizer Production Electric Trommel Screen 12-15 TPH Compost Fertilizer Production Electric Trommel Screen

Large Image :  12-15 TPH Compost Fertilizer Production Electric Trommel Screen

Product Details:
Place of Origin: Henan, China
Brand Name: Gofine
Certification: CE
Model Number: GS1.8X7
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negitionable
Packaging Details: plywood case
Delivery Time: 1-3Sets/15days
Payment Terms: L/C, Western Union, T/T, MoneyGram
Supply Ability: 25Sets/Month

12-15 TPH Compost Fertilizer Production Electric Trommel Screen

Description
Name: Electric Trommel Screen Application: Fertilizer Production
Power: 11kw Working Speed: 13rpm
Capacity: 12-15 TPH Warranty: 1 Year
High Light:

15 TPH Compost Fertilizer Production

,

15 TPH Electric Trommel Screen

,

12 TPH Electric Trommel Screen

12-15 TPH Compost Fertilizer Production Electric Trommel Screen



Introduction



Electric Trommel Screen is composed with reducer, roller device, rack, sealing cover, in and out of the material. Roller device is installed slantly on the rack, The motor is connected with the roller device through the coupling, Drive the drum device to rotate around its axis.



Self-cleaning cage Electric Trommel Screen rotates reasonably the central separation drum of the equipment through the gearbox type deceleration system. During operation, the material enters the cylinder net from the upper end of the central separation cylinder. During the rotation of the separation cylinder, the fine material is separated from the top to the bottom through the screen interval composed of annular flat steel, and the coarse material is separated from the lower end of the separation cylinder discharged into the pulverizer.



During the separation process, through the relative movement of the screen cleaning mechanism and the screen body, the screen body is continuously "combed" by the screen cleaning mechanism, so that the screen body is always kept clean during the whole working process. , the screening efficiency will not be affected by the clogging of the screen holes. It is custom made according to different materials;



Parameters Of Electric Trommel Screen



model

Power

kw

Working speed rpm

Capacity

T/H

GS1X3 3 21 2-3
GS1.2X4 4 18 3-5
GS1.5X6 5.5 16 6-10
GS1.8X7 11 13 12-15
GS2.0X8 15 12 15-20

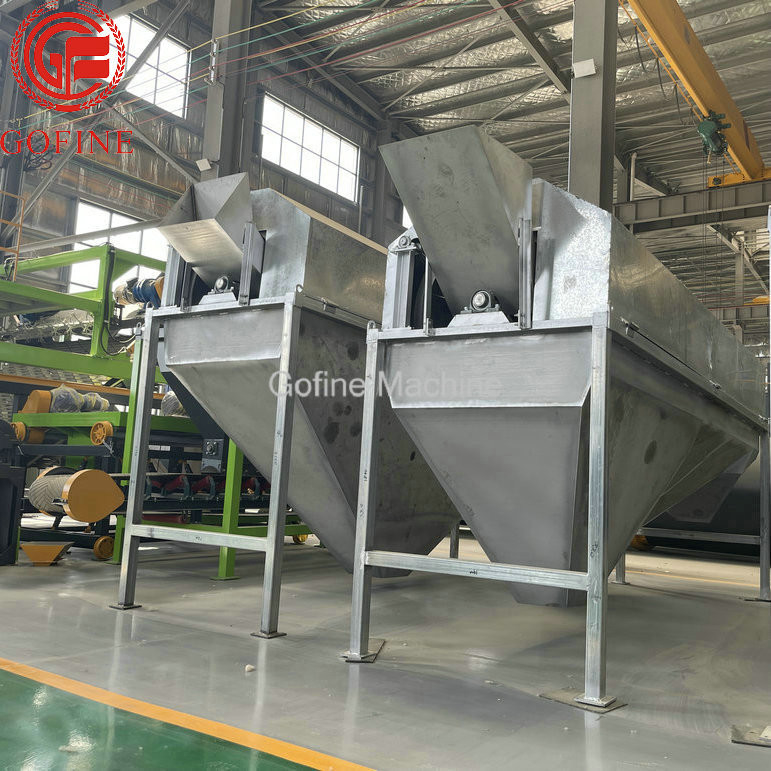

Pictures of Electric Trommel Screen



12-15 TPH Compost Fertilizer Production Electric Trommel Screen 0

12-15 TPH Compost Fertilizer Production Electric Trommel Screen 1
