Product Details:
|
| Name: | Trommel Screening Machine | Application: | Compound Fertilizer |
|---|---|---|---|
| Power: | 15kw | Working Speed: | 12rpm |
| Capacity: | 15-20T/H | Warranty: | 1 Year |
| High Light: | Compost Fertilizer Production Screening Machine,20T/H Trommel Screening Machine,15T/H Trommel Screening Machine |
||
15-20T/H Compost Fertilizer Production Trommel Screening Machine
Introduction of Trommel Screening Machine
The trommel screening machine is a common equipment in the production of compound fertilizer. It is mainly used for the separation of finished products and returned materials. It can also realize the classification of finished products, so that the finished products can be evenly classified.
Our screening machine can solve the issues such as blockage of the screening machine, low efficiency, wet materials, and high energy consumption. Cage trommel screening machine, because of its unique structural characteristics, completely and effectively solves the shortcomings of other types of screening equipment, and is the first choice for fertilizer production.
Self-cleaning cage trommel screening machine rotates reasonably the central separation drum of the equipment through the gearbox type deceleration system. During operation, the material enters the cylinder net from the upper end of the central separation cylinder. During the rotation of the separation cylinder, the fine material is separated from the top to the bottom through the screen interval composed of annular flat steel, and the coarse material is separated from the lower end of the separation cylinder discharged into the pulverizer.
During the separation process, through the relative movement of the screen cleaning mechanism and the screen body, the screen body is continuously "combed" by the screen cleaning mechanism, so that the screen body is always kept clean during the whole working process. , the screening efficiency will not be affected by the clogging of the screen holes. It is custom made according to different materials;
Parameters of Trommel Screening Machine
| model |
Power kw |
Working speed rpm |
Capacity T/H |
| GS1X3 | 3 | 21 | 2-3 |
| GS1.2X4 | 4 | 18 | 3-5 |
| GS1.5X6 | 5.5 | 16 | 6-10 |
| GS1.8X7 | 11 | 13 | 12-15 |
| GS2.0X8 | 15 | 12 | 15-20 |

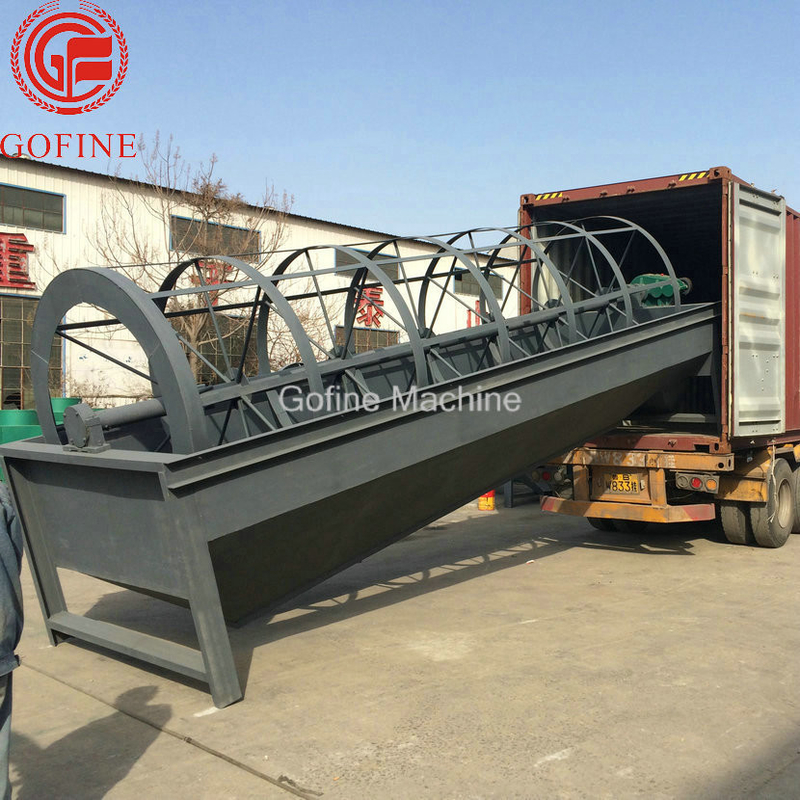

Pictures of Trommel Screening Machine
