Multi Function Double Roller Fertilizer Granulator For Medicine Powder Chemical Additive

Product Details

Place of Origin: china

Brand Name: Gofine

Certification: IOS9001/CE

Model Number: DGZ—1.5

Payment & Shipping Terms

Minimum Order Quantity: 1 Set

Price: Negotiation

Packaging Details: nude cargo

Delivery Time: 5-8work-days

Payment Terms: L/C, T/T, Western Union, MoneyGram

Supply Ability: 30set/monthly

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                Multi Function Double Roller Fertilizer Granulator, Medicine Powder Double Roller Fertilizer Granulator, Chemical Additive Double Roller Fertilizer Granulator


Name:	Roller Granulator Machine	Output:	1.5—2t/h
Forming Ratio:	≥85%	Power:	18.5kw
Feeding Moisture:	2%—5%	Application:	Fertilizer Granulation
Usage:	Compound Fertilizer	After-sales Service Provided:	Engineers Available To Service Machinery Overseas

Name:	Roller Granulator Machine
Output:	1.5—2t/h
Forming Ratio:	≥85%
Power:	18.5kw
Feeding Moisture:	2%—5%
Application:	Fertilizer Granulation
Usage:	Compound Fertilizer
After-sales Service Provided:	Engineers Available To Service Machinery Overseas

Product Description

Multi Function Double Roller Granulator Machine For Medicine Powder Chemical Additive

Working Theory of Roller Granulator machine

This series of roller granulation is an extrusion slip model. Its working principle is that the motor drives the belt and pulley, transmits it to the driving shaft through the reducer, and synchronizes with the driven shaft through the split gear to work in opposite directions. The material is added from the feed hopper, extruded by rollers, demolded and made into balls, and passed through a pair of chains, sent to the crushing screen studio, screened and separated into the finished granules (balls), and then the returned material is mixed with the new material, and then Granulate. With the continuous rotation of the motor and the continuous entry of materials, mass production can be realized.

Specifications of Roller Granulator machine

Model	DGZ—1	DGZ—1.5	DGZ—2
Output	1—1.5t/h	1.5—2t/h	2—2.5t/h
Forming Ratio	≥85%	≥85%	≥85%
Power	15kw	18.5kw	22lw
Feeding moisture	2%—5%

Feature of Roller Granulator machine

Wide application like chemical fertilizer, food and medicine granules production, etc.
Materials can be normal Carbon steel or Stainless Steel
Various final shape and size granules, like semi-round shape, bar shape, cyclindrical shape, etc
Dry granulating process without any further drying process

Application Of Roller Granulator machine

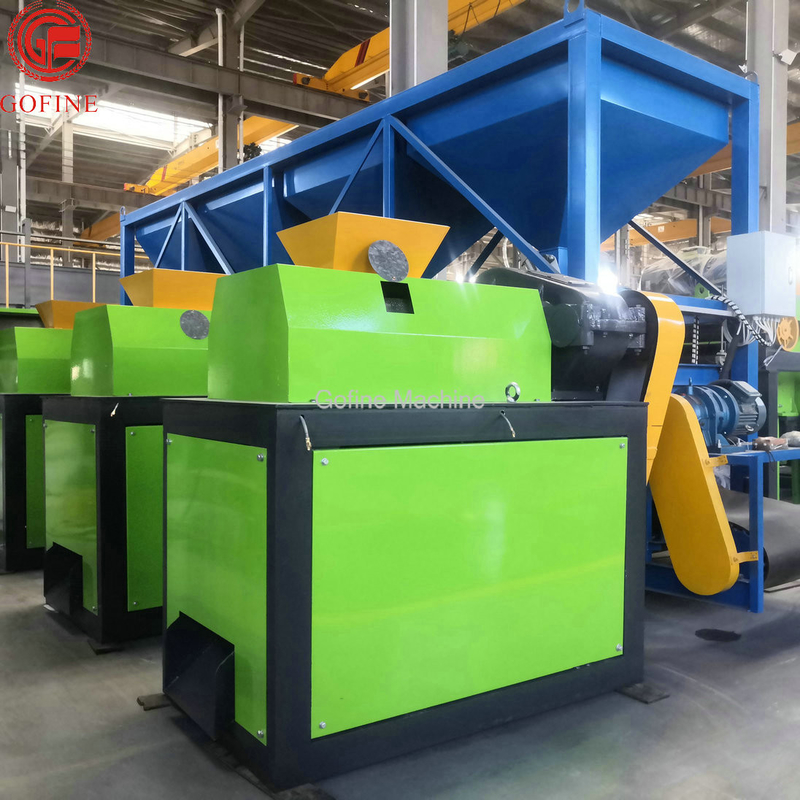

Multi Function Double Roller Fertilizer Granulator For Medicine Powder Chemical Additive 0

Our company wholeheartedly provides users with technical services for complete sets of compound fertilizer equipment, including the overall layout design, production technical guidance, complete set supply, commissioning and production services for the annual output of 10,000 to 100,000 tons of non-drying equipment.
