Complete Fertilizer Granulation Processing Production Line Solution

Product Overview

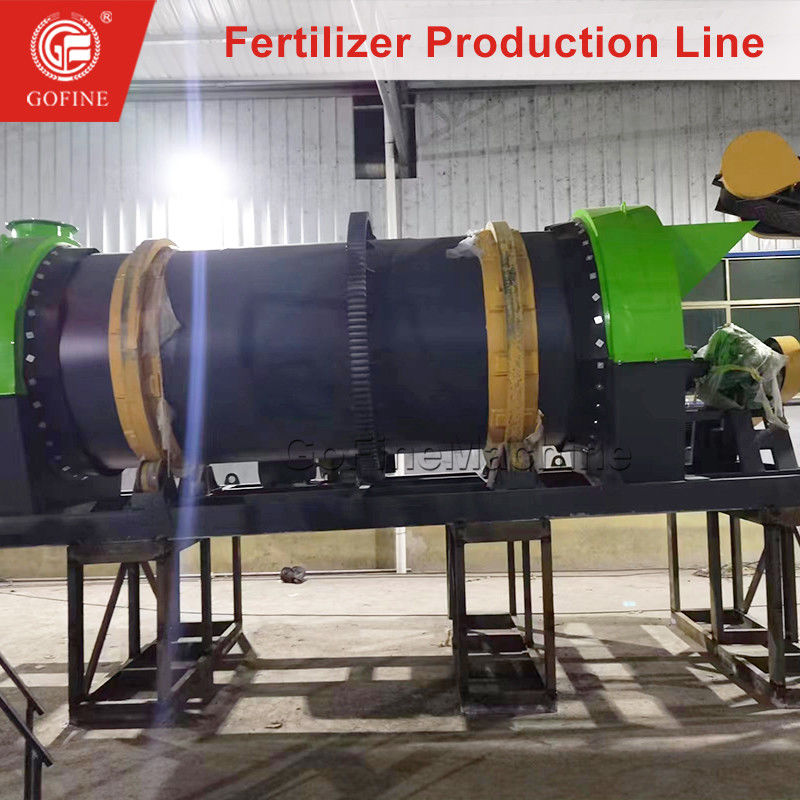

The rotary drum and stirring tooth 2-in-1 fertilizer granulation processing production line is a fertilizer production system that integrates two different granulation methods - rotary drum granulation and stirring tooth granulation - into a single, streamlined process. This combination is designed to increase granulation efficiency, improve pellet quality, and expand the range of materials that can be processed.

Features

• Dual-mode collaborative process: Drum granulation achieves initial agglomeration of materials, and the stirring tooth device performs secondary shaping to improve the roundness (≥90%) and strength of particles.
• Intelligent control system: PLC automatically adjusts the speed, inclination and humidity to adapt to different raw materials (livestock and poultry manure, straw, sludge, etc.).
• Low-carbon energy saving: Energy consumption is 30% lower than that of traditional equipment, and the design without drying link reduces dependence on heat source.
• Modular structure: Dust removal and cooling modules can be expanded to meet environmental emission standards.

Application

Organic fertilizer field: resource utilization of livestock and poultry manure and kitchen waste.
Chemical field: granulation of compound fertilizer and trace element fertilizer.
Environmental protection field: solidification and granulation of sludge in sewage treatment plants.

Fertilizer granulator production line

The typical workflow of a rotary drum agitator 2-in-1 granulator production line usually includes the following steps:
Raw material preparation:
The first step is to prepare the raw materials and convey them to the next ring for processing via a belt conveyor.
Batching and mixing:
The raw materials are batched according to the required fertilizer formula.
Use a stirrer to fully mix the different raw materials to ensure a uniform mix.
2-in-1 granulator:
The new 2-in-1 granulator is used for granulation to form spherical particles.
Drying:
The wet particles are then conveyed to a dryer (usually a rotary dryer) to reduce their moisture content.
The dryer uses hot air to evaporate excess moisture, resulting in stronger and more stable particles.
Cooling:
After drying, the hot particles are cooled in a cooler (usually a rotary cooler).
Cooling helps prevent the particles from agglomerating and improves the handling properties of the particles.
Sieving:
The dried and cooled particles are screened by size through a sieve.
Oversized and undersized particles are usually recycled and returned to the production process.
Coating (optional):
Sifted granules can be coated with a protective layer to improve appearance, prevent caking or control nutrient release.
Packaging:
Finished fertilizer granules are weighed and packed into bags for storage, transportation and sale.
Dust Collection:
Dust collectors are used throughout the production line to minimize dust emissions and maintain a clean working environment.

Product Parameters

Product Details
