Product Details
Place of Origin: China
Brand Name: Gofine
Certification: CE
Model Number: GF-60032
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: $1800-5800/1set
Packaging Details: Plywood case
Delivery Time: 1-3 Sets/15days
Payment Terms: Western Union,MoneyGram,L/C,T/T
Supply Ability: 25 Sets/Month
Product Name: |
Wood Chipper Wood Biomass Shredder |
Type: |
Wood Processing Machines |
Capacity: |
1-2t/h |
Starting Method: |
Electric Start |
Voltage: |
380v |
Main Engine Speed: |
3000r/min |
Feed Roller Diameter: |
280mm |
Feed Roller Power: |
Hydraulic Motor |
Rotor Diameter: |
300 Mm |
Product Name: |
Wood Chipper Wood Biomass Shredder |
Type: |
Wood Processing Machines |
Capacity: |
1-2t/h |
Starting Method: |
Electric Start |
Voltage: |
380v |
Main Engine Speed: |
3000r/min |
Feed Roller Diameter: |
280mm |
Feed Roller Power: |
Hydraulic Motor |
Rotor Diameter: |
300 Mm |

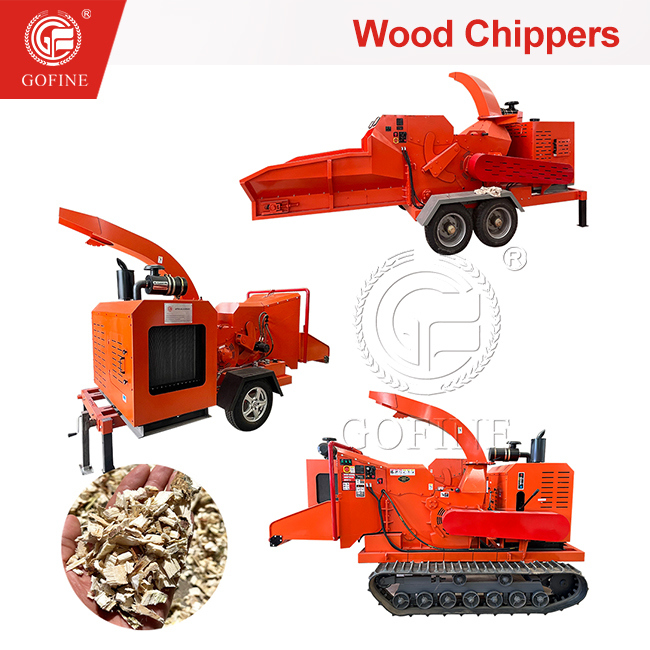

This Wood Chipper Wood Biomass Shredder is designed for crushing garden waste such as branches and wood into small particles. Ideal for landscaping, agriculture, and gardening applications, this equipment efficiently processes garden waste while converting it into reusable resources for organic fertilizer production.
The Wood Chipper Wood Biomass Shredder operates through a high-efficiency process: Materials are fed through the input port (manual or mechanical feeding), where high-speed rotating blades and fixed knives cut and tear them into small particles. Crushed material passes through sieve holes, with oversized particles recirculating for further processing until achieving the desired particle size for discharge.
| Model | GF-60032 | GF-80080 | GF-6180 |
|---|---|---|---|
| Capacity | 1-2 t/h | 3-5 t/h | 6-8 t/h |
| Startup method | Electric start | ||
| Host speed | 3000r/min | 2600r/min | 1600r/min |
| Feed roller diameter | 280mm | 400mm | 600mm |
| Feed roller power | Hydraulic motor | ||
| Number of blades | 4 moving knives, 1 static knife | 8 moving knives, 1 static knife | - |
| Feed port (mm) | 600x400 | 800x620 | 1420x900 |
| Wheel hub | 13-inch | 14-inch | 16-inch |
| Specifications (mm) | 2450x1300x1800 | 3680x1600x3000 | 5600x2200x2900 |
