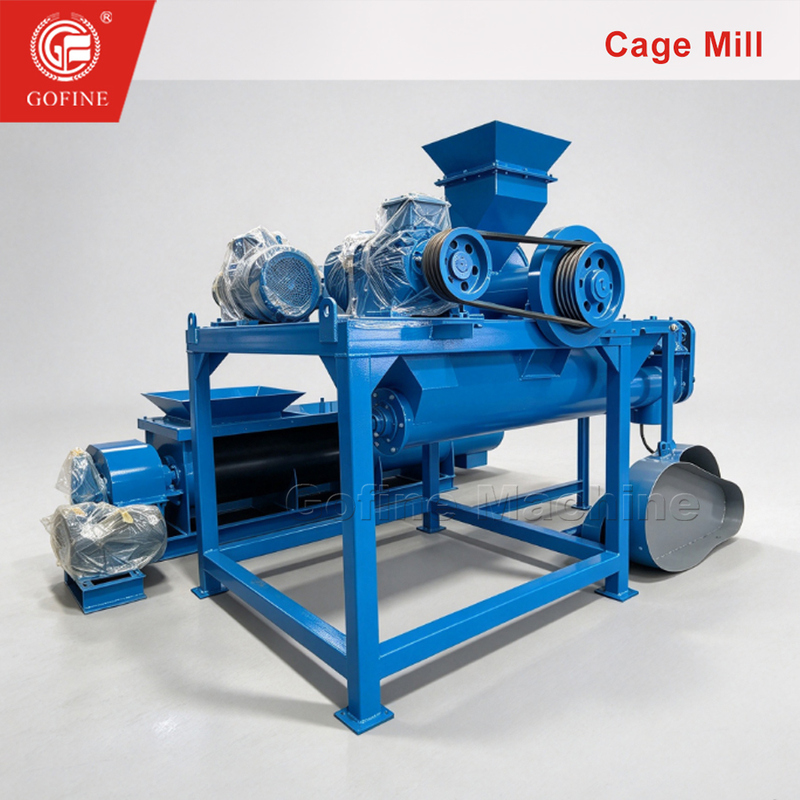

Counter-Rotating Cage Crusher Machine for Mineral Powders

Product Overview

Processing fine mineral powders—such as limestone, gypsum, bentonite, coal dust, and industrial salts—requires crushing equipment that can handle abrasive materials while delivering a consistent, fine particle size. The Counter-Rotating Cage Crusher Machine for Mineral Powders is a heavy-duty impact pulverizer engineered specifically to break down agglomerated mineral particles and reduce raw mineral materials into uniform fine powders.

Unlike conventional crushers that trap material against static screens or wear plates, this machine utilizes high-speed counter-rotating inner and outer cage discs moving in opposite directions. As mineral powders enter the crushing chamber, they experience intense kinetic energy, multi-directional shear forces, and high-velocity collisions between the wear-resistant pin bars. This dual-rotor counter-rotation action shatters hard mineral agglomerates without blinding, ensuring continuous, high-throughput fine crushing. Built by Gofine Machine with high-manganese steel wear-resistant alloy components, a robust structural steel frame, and precision-balanced rotors, this counter-rotating cage crusher delivers reliable 24/7 performance for industrial mineral processing lines.

Key Features

• Unique Structure & High Crushing Efficiency:

  Utilizes two or more sets of oppositely rotating pin-bar cage frames, allowing materials to undergo multiple high-frequency, high-energy impacts and shear forces between the cage bars for thorough pulverization and high throughput.

• Anti-Stick & Non-Clogging Performance:

  Tailored for compound fertilizer raw materials with higher moisture content or stickiness (such as mixtures containing urea and ammonium salts), the mechanical self-cleaning action of the cage bars combined with high-speed centrifugal force effectively minimizes material adhesion and drastically reduces the risk of clogging.

• Uniform Output Particle Size & Precise Control:

  With a short material residence time inside the cage chamber, the crushed particle size distribution is concentrated and over-crushing is avoided—making it especially ideal for pre-granulation preparation stages that demand strict particle sizing.

• Wear-Resistant & Easy Maintenance:

  Critical impact elements (cage bars/pin bars) are manufactured from high-manganese steel, wear-resistant alloy steel, or cemented carbide materials for exceptional abrasion resistance; the housing features an open-door design to facilitate routine inspections and fast replacement of wearing parts.

• Stable Operation & Low Vibration:

  The cage discs undergo precision dynamic and static balancing calibrations, which—when paired with a high-strength cast or welded machine base—ensure the equipment remains stable and low-noise even during high-speed operation.

Applications

The cage mill is extensively utilized for the fine-crushing operations of medium-hard, fragile, or slightly moist/sticky materials:

• Fertilizer Industry:

Crushing of single-nutrient and compound fertilizer raw materials (such as urea, ammonium chloride, ammonium sulfate, monoammonium phosphate DAP/MAP, potassium chloride, etc.).

De-caking and re-crushing of caked fertilizers.

• Organic Fertilizer & Bio-Organic Fertilizer:

Pre-crushing of dried organic materials after fermentation, livestock manure compost blocks, humic acid, straw carbon powder, etc.

• Chemical & Building Materials Powders:

Fine crushing processing of industrial salt, gypsum, limestone, kaolin, coal dust, and other medium-hard minerals.

Integrated Production Line Applications

In automated fertilizer and powder processing lines, the cage mill typically plays the critical role of raw material fine-crushing or secondary pulverization of undersized/oversized return materials:

(1) NPK Compound/Mixed Fertilizer Production Line

Position & Function: Positioned downstream of the automatic batching system and upstream of granulators (such as rotary drum granulators, disc pan granulators, or double roller extrusion granulators).

Process Flow: Various large or caked nitrogen, phosphorus, and potassium raw materials are weighed by batching scales and fed uniformly into the cage mill for high-speed impact and primary mixing, ensuring that the fineness of materials entering the granulator meets requirements (typically 40–80 mesh) to enhance granulation yield and granule strength.

(2) Organic-Inorganic Compound Fertilizer Production Line

Position & Function: Used for fine-crushing and homogenization after blending organic fermented materials with inorganic fertilizers.

Process Flow: Handles mixed materials containing certain levels of moisture and viscosity to prevent issues like large-particle encapsulation or compositional unevenness during downstream granulation.

(3) Closed-Loop Return Material Circulation System in Granulation Lines

Position & Function: Positioned downstream of vibrating screens/grading classifiers.

Process Flow: Unqualified oversized particles separated out by screening are conveyed to the cage mill for secondary fine crushing, and then recycled back into the granulation system—enabling zero-waste closed-loop production.

Summary

Driven by its physical processing characteristics of powerful impact resistance, anti-stick wear resistance, and uniform output, the cage mill stands out as an indispensable crushing solution for constructing high-yield, stable fertilizer granulation plants and powder processing facilities.
