Product Details:
|
Application: | Fertilizer Granulation | Name: | Environmental Friendly Extrusion Granulator With No Waste, Extrusion Granulator |
---|---|---|---|
Power(W): | 11kw | Usage: | Granulation |
Capacity: | 1000 | Power: | 22 |
High Light: | roller press granulator,extrusion granulator |

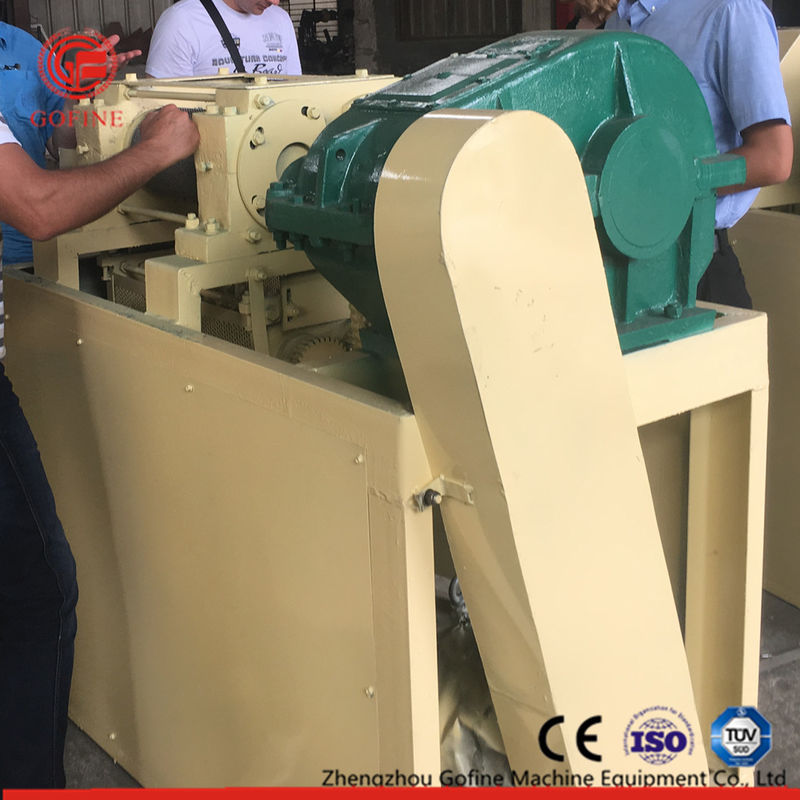

Working principle: adopts the design solution of extrusion sliding model,the raw materials pass through double roller,after that,enter into scattering room, come out as granulation, a sieving was mounted at the bottom of the machine, which is customized according to client’s requirement, last, sieve out the granules which is qualified, the rest of materials return to mixer and be re-granulated.
Less investment, quick results, good economic benefits. The roller extrusion granulator can produce fertilizer by normal temperature without no more drying technology, pellets formed only once extrusion.
Reliable operation and low cost. The machine’s power is small, and operation is reliable; it has no three waste discharge, the operation is stable, and the maintenance is convenient.
The raw materials have wide applicability. It can be used for the granulation of various raw material, like compound fertilizer, medicine, chemical industry, feed, coal, metallurgy.
The roller extrusion granulator can be used for the granulation of earth, carbon ammonium and ammonium sulfate compound fertilizer, filling the domestic blank.
The complete equipment is less investment, quicker and good economic returns. It is also compact, scientific and rational, and advanced technology. The whole equipment is saving energy, no waste discharge, stable operation, reliable operation and easy maintenance. Wide adaptability of raw materials includes fertilizer, pharmaceuticals, chemicals, feed and other raw materials. The ratio of forming particles is high. It can produce a variety of concentrations of various types (including organic fertilizer, inorganic fertilizer, fertilizer, and magnetic fertilizer) fertilizer, in particular, rare earth, ammonium bicarbonate series of fertilizer granulation. The production line fills the gap, leading in China.
The raw materials have wide adaptability and high granulation rate It can produce compound fertilizers of various comcentra ions and types
Model | power(kw) | Particle diameter(mm) | Roller size(mm) | Overall dimensions(mm) |
JZ-1T |
diameters4.5mm : 11 diameter > 4.5mm : 15 |
3- 10 | 150*220 | 1450*800*1450 |
JZ-1.5T |
diameters4.5mm : 18.5 diameter > 4.5mm : 22 |
3- 10 | 150*300 | 1450*850*1500 |
JZ-2T |
diameters4.5mm : 22 diameter > 4.5mm : 30 |
3- 10 | 185*300 | 1630*850*1650 |
JZ-2.5T |
diameters4.5mm: 37 diameter > 4.5mm : 45 |
3- 10 | 300*300 | 1850*1100*2050 |
