Product Details:
|
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Name: | Fully Automatic Double Roll Granulator By Pressing Of Two Rollers |
|---|---|---|---|
| Installation: | Guide | Weight: | 3 Years |
| Warranty: | 1000 | Power(W): | 11kw |
| High Light: | double roller fertilizer granulator,extrusion granulator |
||

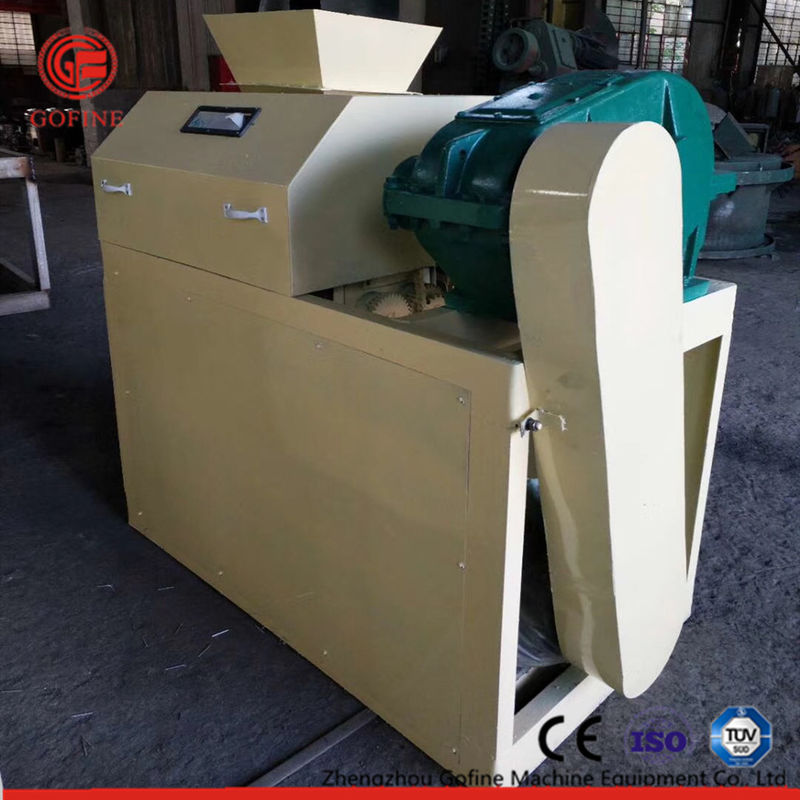

double roller granulator / dry fertilizer granulating equipment widely used for granulation of various materials,such as compound fertilizer material, medicine, chemical industry, fodder etc.Can produce a variety of concentrations, various types compound fertilizer(including organic fertilizer, inorganic fertilizer, biological fertilizer, magnetic fertilizer etc).Especially for rare earths,potash, ammonium bicarbonate series compound fertilizer.Also the promotion program of environmental projects.
Driven by the motor pulley, the belt passed through the reducer to a pair of sliding mold shell with two high pressure roller bodies, make them to do the opposite work. For the DZJ-Ⅰtype extruder, between the two rollers is a group of counter gears interaction with each other. While the DZJ-Ⅱ-type extruder, the two rollers are directly driven by a dedicated reducer on the two output shaft, and finally reach the purpose of granulation.
The complete equipment is less investment, quicker and good economic returns. It is also compact, scientific and rational, and advanced technology. The whole equipment is saving energy, no waste discharge, stable operation, reliable operation and easy maintenance. Wide adaptability of raw materials includes fertilizer, pharmaceuticals, chemicals, feed and other raw materials. The ratio of forming particles is high. It can produce a variety of concentrations of various types (including organic fertilizer, inorganic fertilizer, fertilizer, and magnetic fertilizer) fertilizer, in particular, rare earth, ammonium bicarbonate series of fertilizer granulation. The production line fills the gap, leading in China.
The raw materials have wide adaptability and high granulation rate It can produce compound fertilizers of various comcentra ions and types
| Model | power(kw) | Particle diameter(mm) | Roller size(mm) | Overall dimensions(mm) |
| JZ-1T |
diameters4.5mm : 11 diameter > 4.5mm : 15 |
3- 10 | 150*220 | 1450*800*1450 |
| JZ-1.5T |
diameters4.5mm : 18.5 diameter > 4.5mm : 22 |
3- 10 | 150*300 | 1450*850*1500 |
| JZ-2T |
diameters4.5mm : 22 diameter > 4.5mm : 30 |
3- 10 | 185*300 | 1630*850*1650 |
| JZ-2.5T |
diameters4.5mm: 37 diameter > 4.5mm : 45 |
3- 10 | 300*300 | 1850*1100*2050 |
