Highlight:
2t / H Double Roller Fertilizer Granulator
, Organic Double Roller Fertilizer Granulator
, 2t / H Fertilizer Granulation Equipment
Name: |
Double Roller Fertilizer Granulator |
Capacity: |
1.5—2t/h |
Granulating Ratio: |
≥90% |
Power: |
18.5kw |
After-sales Service Provided: |
Engineers Available To Service Machinery Overseas |
Type: |
Granulation Equipment |
Color: |
Any |
Usage: |
Organic Fertilizer, Inorganic Fertilizer |

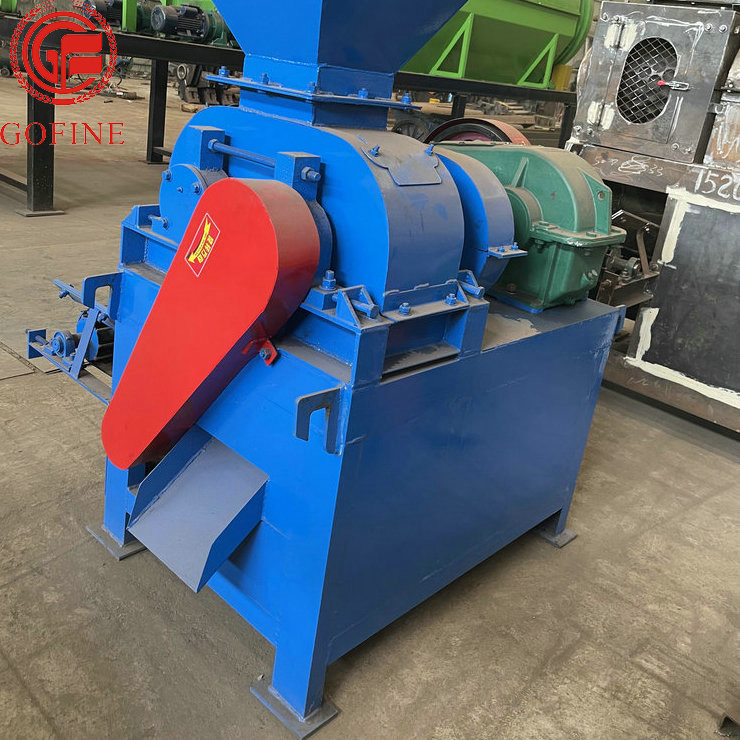

1.5—2t/H Double Roller Fertilizer Granulator Granulation Equipment
Introduction of Double Roller Fertilizer Granulator
Double Roller Fertilizer Granulator is compact in layout, scientific and reasonable, and advanced in technology. The equipment has low investment, quick effect, good economic benefits, energy saving and consumption reduction, no discharge of three wastes, stable operation, reliable operation and convenient maintenance. The raw material has wide adaptability and is suitable for granulation of various raw materials such as fertilizer, medicine, chemical industry, feed, etc. The product has a high granulation rate.
Working principle of Double Roller Fertilizer Granulator
The series of roll granulation is extrusion model , its working principle is the belt and pulley driven by electric motors , to the driving shaft to pass through the reducer, and synchronization off then gear and the driven shaft opposite the
Work. Material from the hopper to feed, after the roll extrusion molding making into ball shape, then to the broken screen to finish the separation, finally get the even oval shape granules;
Technical parameter of Double Roller Fertilizer Granulator
| Type |
DGZ—1 |
DGZ—1.5 |
DGZ—2 |
| capacity |
1—1.5t/h |
1.5—2t/h |
2—2.5t/h |
| granulating ratio |
≥90% |
≥90% |
≥90% |
| power |
11kw |
18.5kw |
22lw |
|
material moisture content
|
2%—15% |
|
Granulation temperature
|
room temperature |
|
granules
|
diameter |
3.5—10(mm) |
|
Strength
|
6—20N( Crushing strength ) |
| shape |
spheroidicity |
Application
It can produce various concentrations, multiple types (including organic fertilizer, inorganic fertilizer, biological fertilizer, magnetic fertilizer, and so on) compound fertilizer. In particular, rare earth, potassium fertilizer, and ammonium bicarbonate series compound fertilizer granulation.
