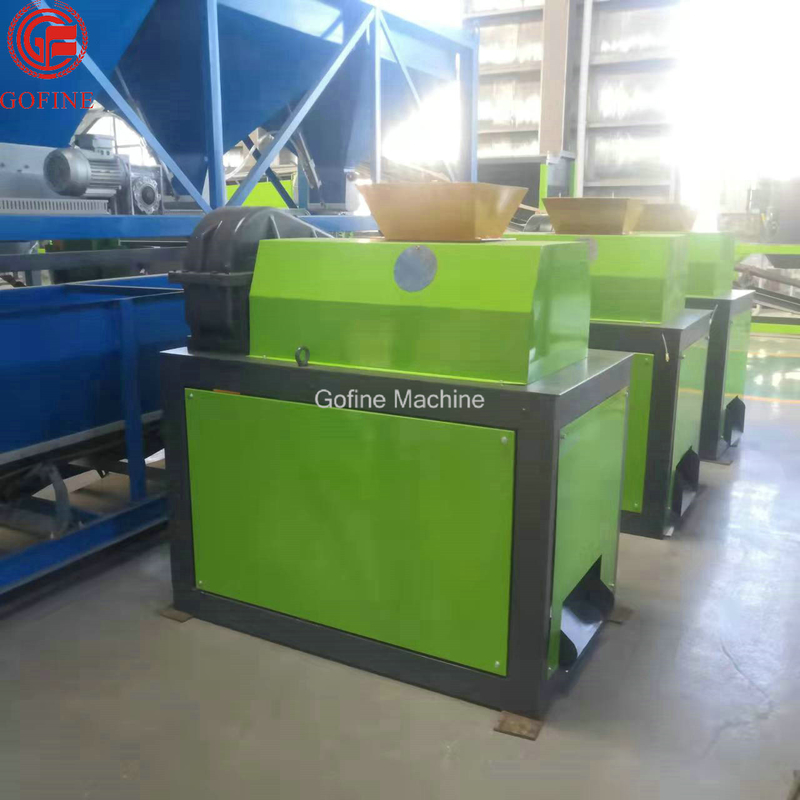

1t/H - 1.5t/H Roller Press Granulator Fertilizer Granulation Hydraulic System

Product Details

Place of Origin: china

Brand Name: Gofine

Certification: IOS9001/CE

Model Number: DGZ—1

Payment & Shipping Terms

Minimum Order Quantity: 1 Set

Price: Negotiation

Packaging Details: nude cargo

Delivery Time: 5-8work-days

Payment Terms: L/C, T/T, Western Union, MoneyGram

Supply Ability: 30set/monthly

Get Best Price
Product Details
Highlight:

1.5t/H Fertilizer Roller Press Granulator

,

1t/H Fertilizer Roller Press Granulator

,

1.5t/H Roller Fertilizer Granulator

Name:
Roller Press Granulator
Output:
1t/H - 1.5t/H
Forming Ratio:
≥85%
Power:
15kw
Feeding Moisture:
2%—5%
Usage:
Fertilizer Granulation
Name:
Roller Press Granulator
Output:
1t/H - 1.5t/H
Forming Ratio:
≥85%
Power:
15kw
Feeding Moisture:
2%—5%
Usage:
Fertilizer Granulation
Product Description

1t/H - 1.5t/H Roller Press Granulator Fertilizer Granulation Hydraulic System



The Roller Press Granulator is a dry granulation process that uses pressure to agglomerate solid materials. This is achieved by squeezing the material by two counter-rotating rollers, which are driven by an eccentric sleeve or hydraulic system. When the solid material is squeezed, the air between the powder particles is first removed to rearrange the particles to eliminate the gaps between the materials.



Specifications of Roller Press Granulator



Model DGZ—1 DGZ—1.5 DGZ—2
Output 1—1.5t/h 1.5—2t/h 2—2.5t/h
Forming Ratio ≥85% ≥85% ≥85%
Power 15kw 18.5kw 22lw
Feeding moisture 2%—5%



Feature of Roller Press Granulator



  1. Wide application like chemical fertilizer, food and medicine granules production, etc.
  2. Various final shape and size granules, like semi-round shape, bar shape, cyclindrical shape, etc
  3. Dry granulating process without any further drying process



Application Of Roller Press Granulator



1t/H - 1.5t/H Roller Press Granulator Fertilizer Granulation Hydraulic System 0



Our company wholeheartedly provides users with technical services for complete sets of compound fertilizer equipment, including the overall layout design, production technical guidance, complete set supply, commissioning and production services for the annual output of 10,000 to 100,000 tons of non-drying equipment.
