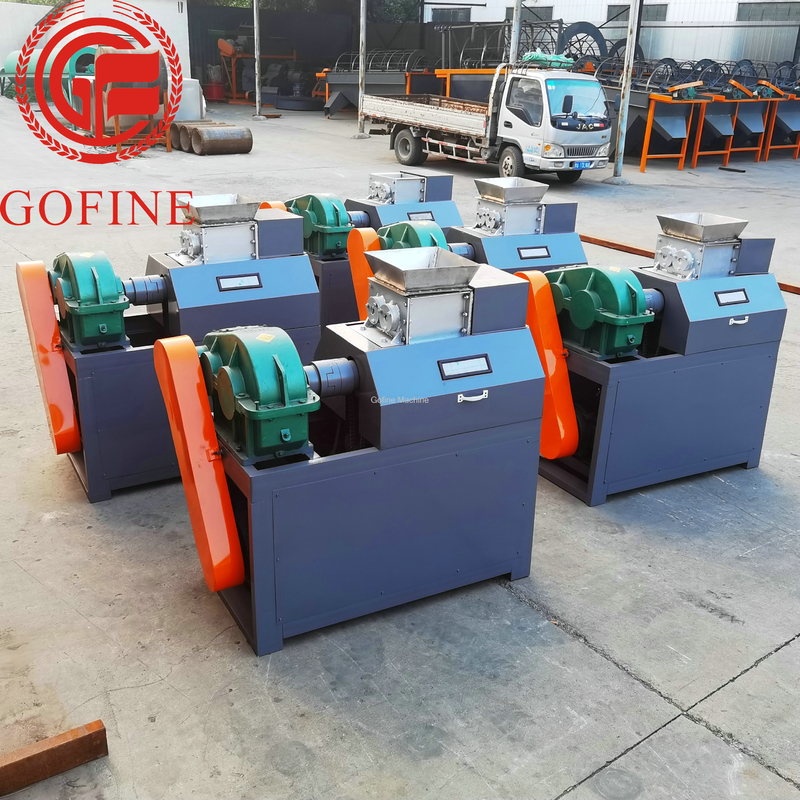

2-2.5t/H Double Roller Fertilizer Granulator Easy To Operate

2-2.5t/H Double Roller Fertilizer Granulator Easy To Operate

Main Application in Fertilizer Field

Our company designs extruding granulators for fertilizers such as ammonium sulfate, ammonium chloride, and potash. It also can be used to produced NPK compound fertilizer, organic compost fertilizer, can press into oval shape granules with diameter 2-10mm.

Extrusion Granulator Structure

Commonly seen is the roller extrusion, which is composed of a feeding device and two parallel and opposite pressing rollers. The axis line of one pressure roll is fixed, and the axis line of the other roll can be moved in parallel, and there is an accurate small gap between the two rolls.

Usually, the feeding device is above the parallel rolls, and the material is forced into the gap between the two rolls by the running friction between the material of the feeding system and the rolls. The material is brought in under the rotation of the roller and extruded into a pancake (sheet). After falling, it is broken into small particles by a crushing device, and then sieved to obtain particles of qualified grade.

Specifications

Feature

1. Wide application like chemical fertilizer, food and medicine granules production, etc.

2. Materials can be normal Carbon steel or Stainless Steel

3. Various final shape and size granules, like semi-round shape, bar shape, cyclindrical shape, etc

4. Dry granulating process without any further drying process

Pictures

Our company wholeheartedly provides users with technical services for complete sets of compound fertilizer equipment, including the overall layout design, production technical guidance, complete set supply, commissioning and production services for the annual output of 10,000 to 100,000 tons of non-drying equipment.
