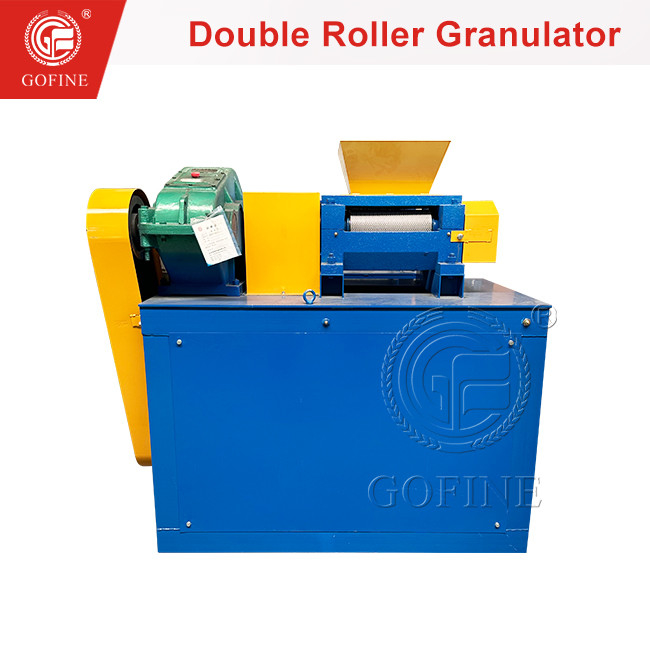

Powdered Materials Dry Granulator Fertilizer Compactor Machine

Powdered Materials Dry Granulator Fertilizer Compactor Machine
Powdered Materials Dry Granulator Fertilizer Compactor Machine
Powdered Materials Dry Granulator Fertilizer Compactor Machine Powdered Materials Dry Granulator Fertilizer Compactor Machine Powdered Materials Dry Granulator Fertilizer Compactor Machine Powdered Materials Dry Granulator Fertilizer Compactor Machine Powdered Materials Dry Granulator Fertilizer Compactor Machine Powdered Materials Dry Granulator Fertilizer Compactor Machine

Large Image :  Powdered Materials Dry Granulator Fertilizer Compactor Machine

Product Details:
Place of Origin: China
Brand Name: Gofine
Certification: CE
Model Number: DZJ-I-2.0
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: film packed in a Container
Delivery Time: 1-3 Sets/15days
Payment Terms: Western Union, MoneyGram, L/C, T/T
Supply Ability: 25 Sets/Month

Powdered Materials Dry Granulator Fertilizer Compactor Machine

Description
Features: Dry Granulator Capacity: 1-2t/h
Roller: 300x150mm, Alloy Steel Granulation Method: Extrusion
Roller Size: 300x150mm Producing Capacity: 1-2T/H
Final Granule Size: Diameter 2-20mm Granulation Rate: >98%
High Light:

Powdered Materials Fertilizer Compactor Machine

,

Dry Granulator Fertilizer Compactor Machine

Product Description:

The Dry Granulator Fertilizer Compactor Machine is a highly efficient piece of equipment for dry granulation, featuring advanced technology and a compact design. Its practical and novel design ensures low energy consumption, and it can also form a small production line with other supporting equipment. This granulator boasts the ability to achieve continuous production at room temperature, making it a versatile option for granule production in fields such as compound fertilizers, organic fertilizers, inorganic fertilizers, cat litter, graphite, snow-melting agents, detergents, and more.
Perhaps even more impressively, this granulator can produce high-quality products without the need for drying, which sets it apart from other granulators on the market. Additionally, its versatility allows it to produce high, medium, and low concentrations of special compound fertilizers that are ideal for a variety of different crops.
Overall, the double roller granulator is an exceptional piece of equipment that offers a number of unique benefits in the world of granule production. With its practical design, low energy consumption, and ability to produce high-quality products without the need for drying, it is a top choice for professionals in the field.

Powdered Materials Dry Granulator Fertilizer Compactor Machine 0

Features:

Dry Granulator Fertilizer Compactor Machine it is possible to complete the granulation process successfully without the need to incorporate any binder. This is a significant advantage, as it eliminates the need to add any potentially harmful chemicals into the product.
Another significant benefit of the granulation process is that it can be achieved at room temperature. This eliminates the need for a time-consuming and potentially costly drying process, which can save time and resources for the manufacturer.
The size and hardness of the granules can be easily manipulated by adjusting the pressure and size of the double rollers. This customization feature of the process allows manufacturers to tailor their product to meet specific requirements, making it an ideal solution for a wide range of applications.
The granulation process has a small footprint, making it suitable for smaller manufacturing facilities. Additionally, it has low energy consumption, which can help reduce operational costs. Lastly, the process has excellent anti-corrosion properties, ensuring that the equipment can be used for a long lifespan, providing economic benefits in the long term.

Powdered Materials Dry Granulator Fertilizer Compactor Machine 1

Technical Parameters:

Product Name:Dry Granulator Fertilizer Compactor Machine
Model:Double Roller Press Extrusion Granulator Machine
Product Type:Fertilizer Granulator Machine
Final Granule Size:Diameter 2-20mm
Roller:300x150mm, Alloy Steel
Installation:Guide
Roller Diameter:200mm
Material:Carbon Steel Or Stainless Steel (customizable)
Roller Size:300x150mm
Capacity:1-2t/h
Use:Powder Material Processing
Granulation Rate:>98%
Features:Dry Granulator



Applications:

The dry extrusion granulation method is utilized by the Dry Granulator Fertilizer Compactor Machine, which offers an efficient way of converting materials into granules. In this process, a belt and pulley mechanism is driven by an electric motor to initiate the granulation process. The machine's driving shaft passes through the reducer and works in coordination with the gear and opposite driven shaft.
As the granulation process starts, the materials are fed into the machine through the hopper. Afterward, they are pressed by a set of rollers resulting in the formation of compact ball cakes. The roller extrusion ensures that the size of the granules is consistent and uniform.
The granules that are formed in the previous step are separated by a crushing screen. The screen breaks the compact ball cakes resulting in uniformly shaped oval particles. Using the double roller granulator ensures consistent particle size of the granules produced.
Powdered Materials Dry Granulator Fertilizer Compactor Machine 2
Powdered Materials Dry Granulator Fertilizer Compactor Machine 3

Support and Services:

The Dry Granulator Fertilizer Compactor Machine is a machine designed for producing organic fertilizer and compound fertilizer granules. It uses squeezing principle to form fertilizer materials with diameters of 3.5-10mm in one time. This fertilizer granulator machine is widely used in the organic fertilizer production line, compound fertilizer production line, and BB fertilizer production line.
The product technical support and services for the Double Roller Fertilizer Granulator include:

  • Technical guidance for installation, commissioning, and operation
  • Regular maintenance and repair services
  • Replacement of parts and components
  • Online technical support
  • Training services for operators and maintenance personnel

Our team of experienced technicians and engineers is dedicated to providing high-quality technical support and services to our customers. We are committed to ensuring the long-term and reliable operation of our products.



Packing and Shipping:

Product Packaging:

  • 1 set per wooden case
  • Dimensions: 1350mm x 750mm x 1150mm
  • Gross weight: 500kg

Shipping:

  • Shipping method: By sea, by air or by land
  • Delivery time: Within 15-30 days after receiving the deposit
  • Port of shipment: Qingdao Port, China


Powdered Materials Dry Granulator Fertilizer Compactor Machine 4

FAQ:

Q: What is the brand name of this Dry Granulator Fertilizer Compactor Machine?
A: The brand name of this fertilizer granulator is Gofine.
Q: What is the model number of this fertilizer granulator machine?
A: The model number of this fertilizer granulator is DZJ-I-2.0.
Q: Where is this fertilizer granulator made?
A: This fertilizer granulator is made in China.
Q: Does this fertilizer granulator have any certification?
A: Yes, this fertilizer granulator has CE certification.
Q: What is the minimum order quantity for this fertilizer granulator?
A: The minimum order quantity for this fertilizer granulator is 1.
Q: What is the price of this fertilizer granulator?
A: The price of this fertilizer granulator is negotiable.
Q: How is this fertilizer granulator packaged?
A: This fertilizer granulator is film packed in a Container.
Q: What is the delivery time for this fertilizer granulator?
A: The delivery time for 1-3 sets is 15 days.
Q: What are the payment terms for this fertilizer granulator?
A: The payment terms for this fertilizer granulator are Western Union, MoneyGram, L/C, and T/T.
Q: What is the supply ability of this fertilizer granulator?
A: The supply ability of this fertilizer granulator is 25 sets per month.
