Heavy Duty Rotary Drum NPK Granular Fertilizer Processing Line

Processing high-density, highly abrasive compound chemical formulations—such as high-nitrogen urea combinations, monoammonium phosphate (MAP), diammonium phosphate (DAP), and potassium chloride—exerts continuous mechanical strain on wet granulation plants. The Heavy Duty Rotary Drum NPK Granular Fertilizer Processing Line is engineered specifically for severe-duty industrial operations requiring non-stop 24/7 run cycles, high structural rigidity, and maximum hourly output without mechanical deflection or gear wear.

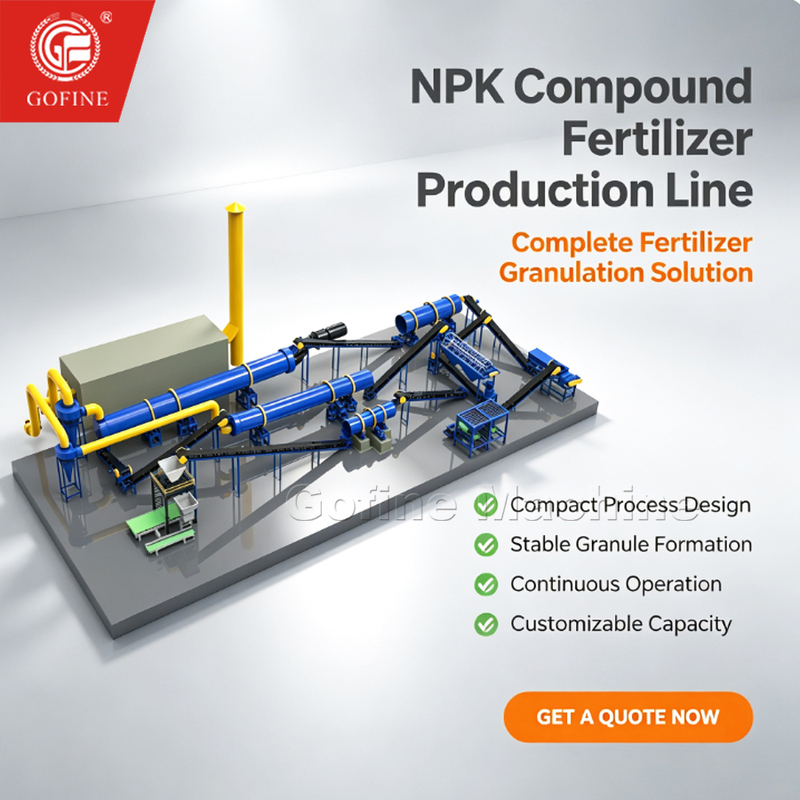

Unlike standard-capacity NPK lines, this heavy-duty system features thick-gauge reinforced steel hulls, drop-forged alloy steel riding rings, and precision-machined heavy cast tooth drive gears. Powered by variable-frequency drive motors, the inclined drum utilizes high-pressure steam injection and fine liquid atomization to roll chemical powders into uniform, dense, spherical NPK granules. The complete turnkey line integrates heavy-duty cage crushers, automated dynamic belt-weighing feed scales, industrial rotary thermal drying and counter-current air cooling cylinders, heavy vibrating multi-deck classifiers, and an anti-caking conditioning drum. As a dedicated factory supplier, Gofine Machine equips the internal cylinder with flexible, acid-resistant, anti-stick rubber liners, guaranteeing granulating efficiency exceeding 90% and eliminating material build-up in high-volume compound fertilizer production.

To ensure operational stability and long-term reliability, the Gofine rotary drum granulator incorporates several precision-engineered features:

• Corrosion-Resistant Interior: The internal drum is lined with specialized UHMW-PE (Ultra-High Molecular Weight Polyethylene) or acid-resistant stainless steel plates. This minimizes material sticking and protects the shell from the corrosive nature of ammoniated compounds.
• Enhanced Granulation Rate: Through the optimization of drum inclination (typically 2.0% to 5.0%) and rotational speed, the system achieves a granulation rate exceeding 90%, with fewer fines requiring recycling.
• Steam Injection Technology: Integrated steam piping allows for the adjustment of material temperature and moisture levels, ensuring optimal plasticity for granule formation without relying on excessive liquid binders.
• Heavy-Duty Transmission: Featuring a large cast steel gear and a high-performance motor-reducer assembly, the unit maintains stable torque even under full-load conditions (capacities ranging from 1 t/h to 20 t/h).

This granulation system is highly versatile and suitable for:

• High-Concentration Compound Fertilizer: Producing formulas like 15-15-15 or 20-20-10.
• Ammoniation Granulation Processes: Integrating liquid ammonia, phosphoric acid, or sulfuric acid.
• Organic-Inorganic Mixtures: Processing bio-organic materials that require a specific moisture-heat balance for pelletizing.

The production sequence in the drum is a coordinated mechanical and chemical process:

• Material Feeding: Base powders (such as Urea, MAP, or Potassium Chloride) are fed into the rotating drum at a constant rate.
• Ammonia/Steam Injection: Under the rolling bed of material, gaseous ammonia steam are injected. The resulting chemical heat and moisture soften the particles.
• Rolling & Agglomeration: As the drum rotates, the softened materials collide and adhere to each other, forming spherical "seeds" that grow into full-sized granules through centrifugal force.
• Discharge: The finished granules exit the drum and are conveyed to drying and cooling units to finalize their structural hardness.

As a specialized manufacturer, we focus on equipment longevity and process efficiency. Our designs prioritize minimized maintenance intervals and stable operational performance. We provide comprehensive layout designs and technical support to ensure the equipment integrates seamlessly into your existing production plant.
